From: Identification and validation of a prognostic model based on four genes related to satellite nodules in hepatocellular carcinoma

Figure 4

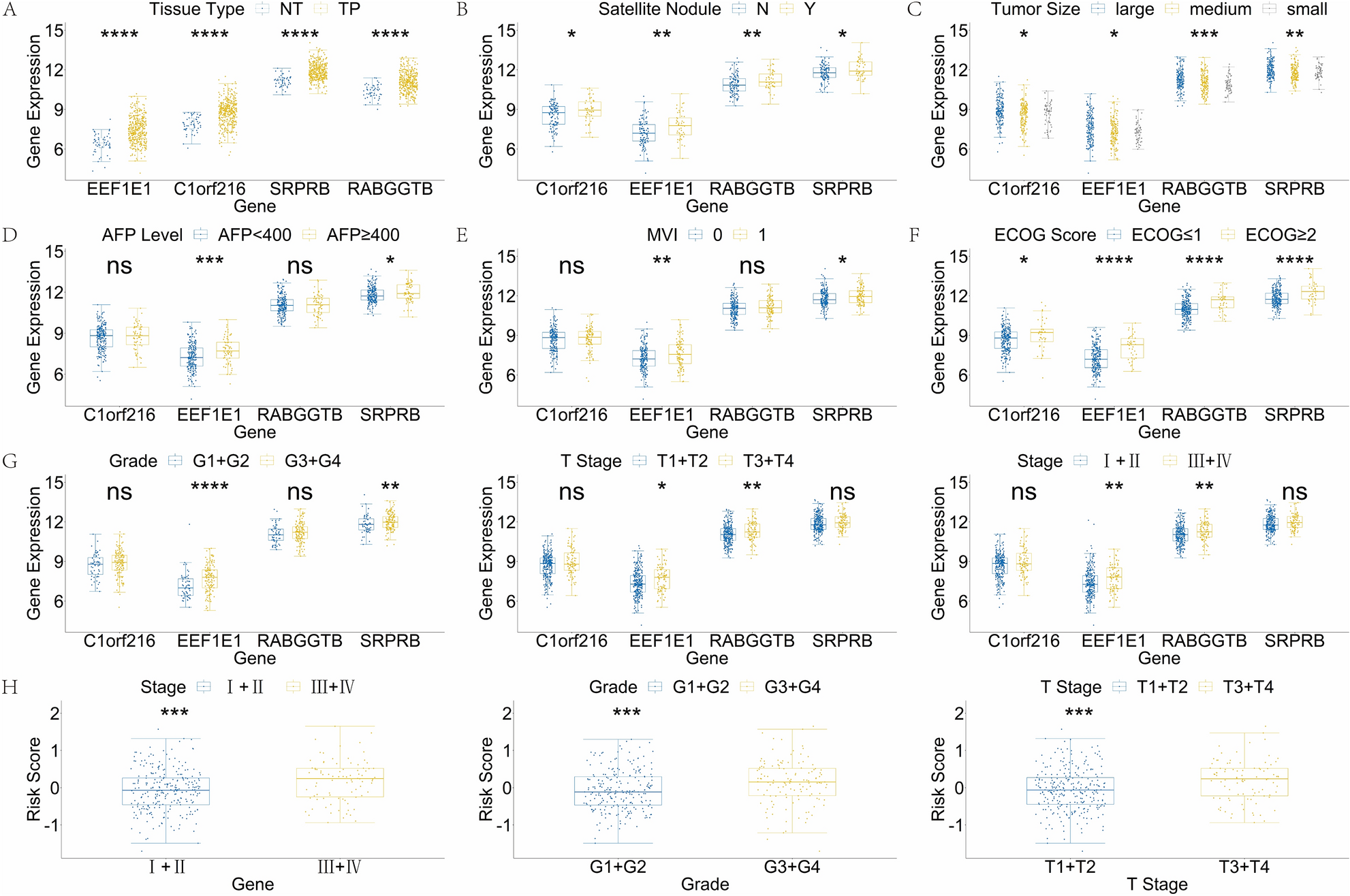

The correlation for pathobiochemical hallmarks of HCC and 4 SNRGs. (A) The correlation between gene expression and tissue type (NT: normal tissue, TP: primary tumor). (B)The correlation between gene expression and tumor with or without satellite nodules (N: without, Y: with). (C) The correlation between gene expression and tumor size. (D) The correlation between gene expression and AFP level. (E) The correlation between gene expression and MVI status (0: without MVI, 1: with MVI). (F) The correlation between gene expression and ECOG status (≤ 1 vs. ≥ 2). (G) The correlation between gene expression and tumor grade (G1 + G2 vs. G3 + G4), T stage (T1 + T2 vs. T3 + T4) and clinical stage (I + II vs. III + IV). (H) The correlation between risk score and tumor grade (G1 + G2 vs. G3 + G4), T stage (T1 + T2 vs. T3 + T4) and clinical stage (I + II vs. III + IV). NS: not significant; *p < 0.05, **p < 0.01, ***p < 0.001, ****p < − 0.0001.
