Figure 13
From: Numerical simulation of blasting behavior of rock mass with cavity under high in-situ stress

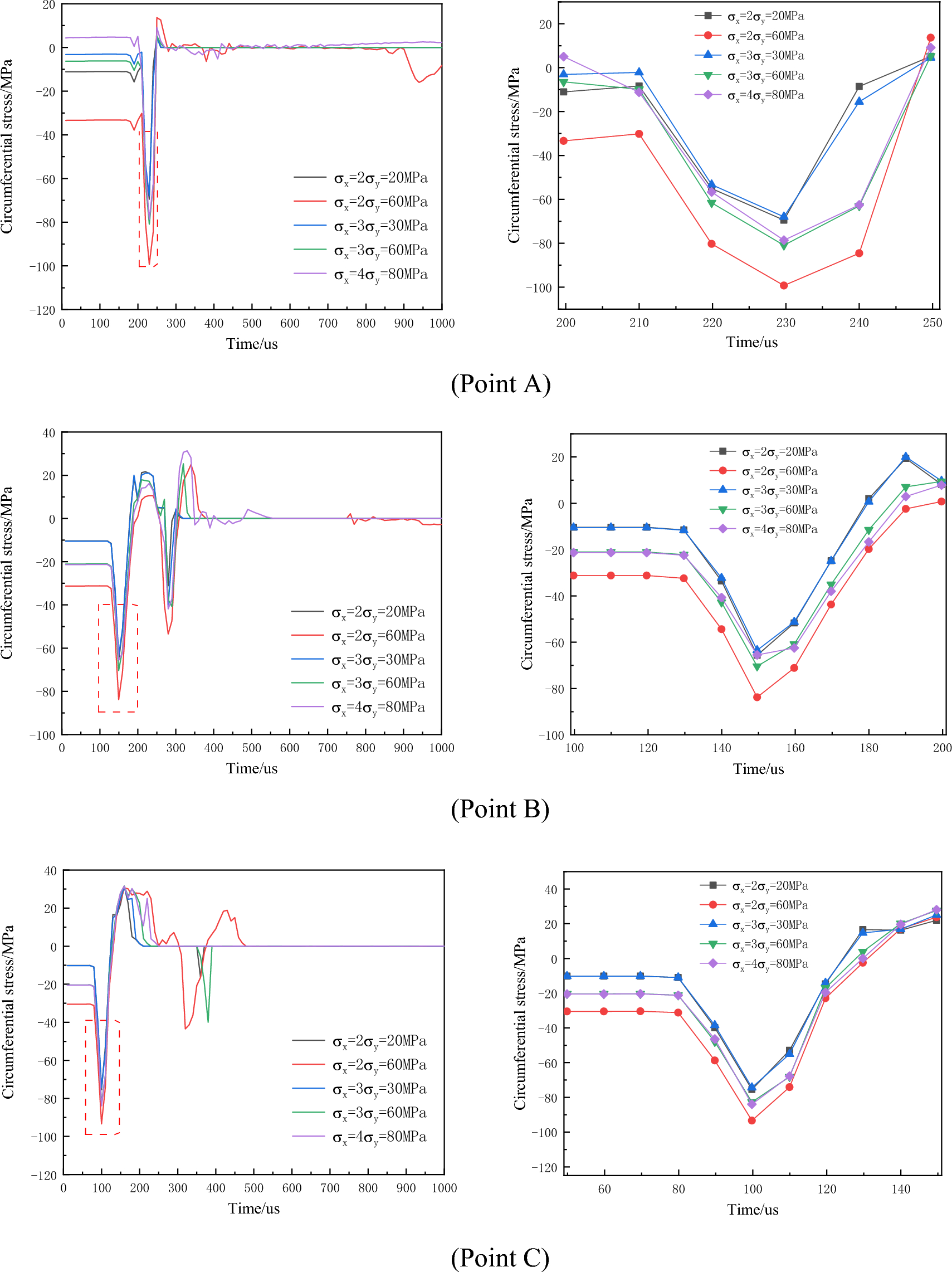

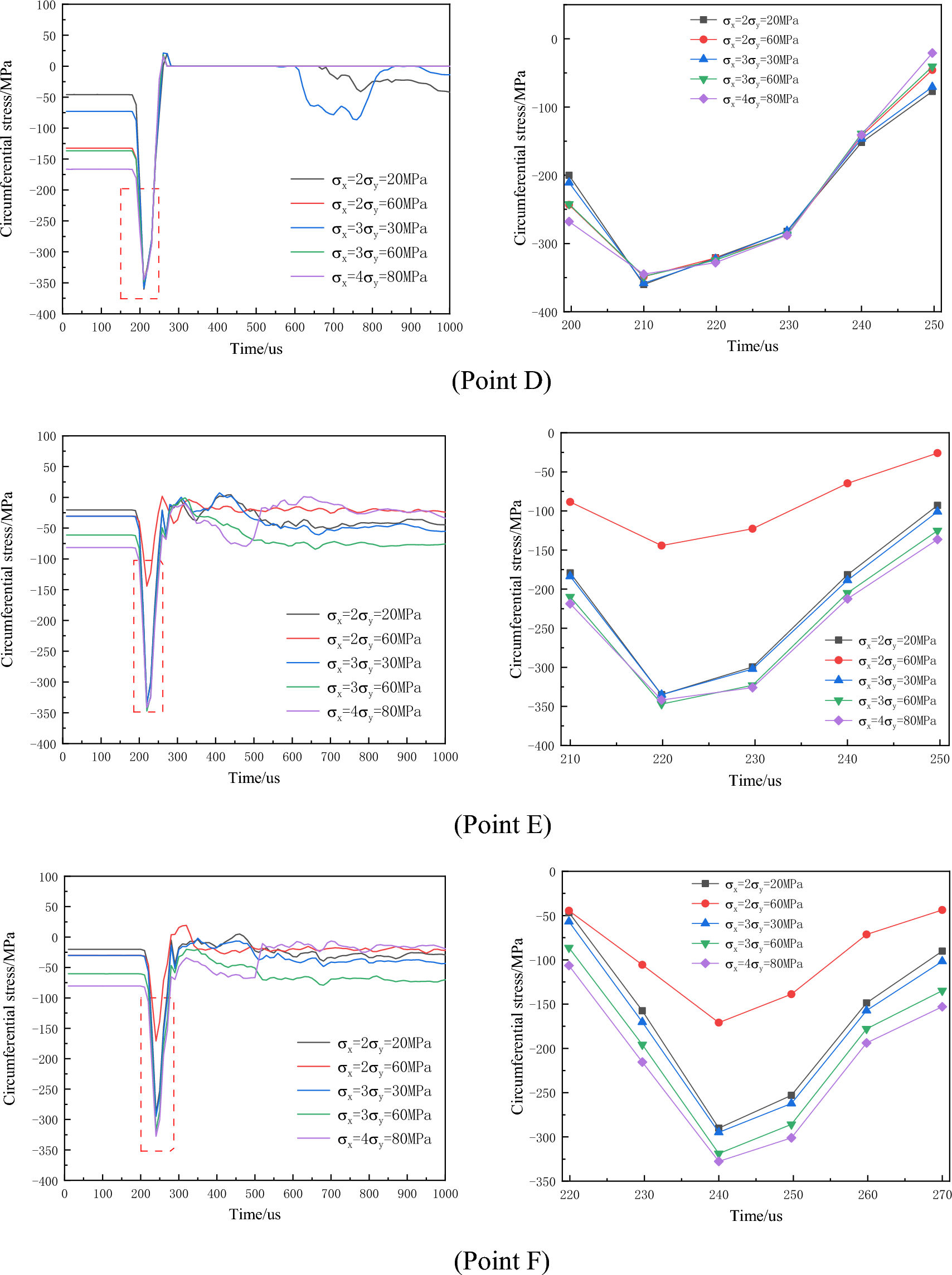

Time history curve of circumferential stress around the empty hole under different non-hydrostatic geostress conditions (local amplification on the right).
