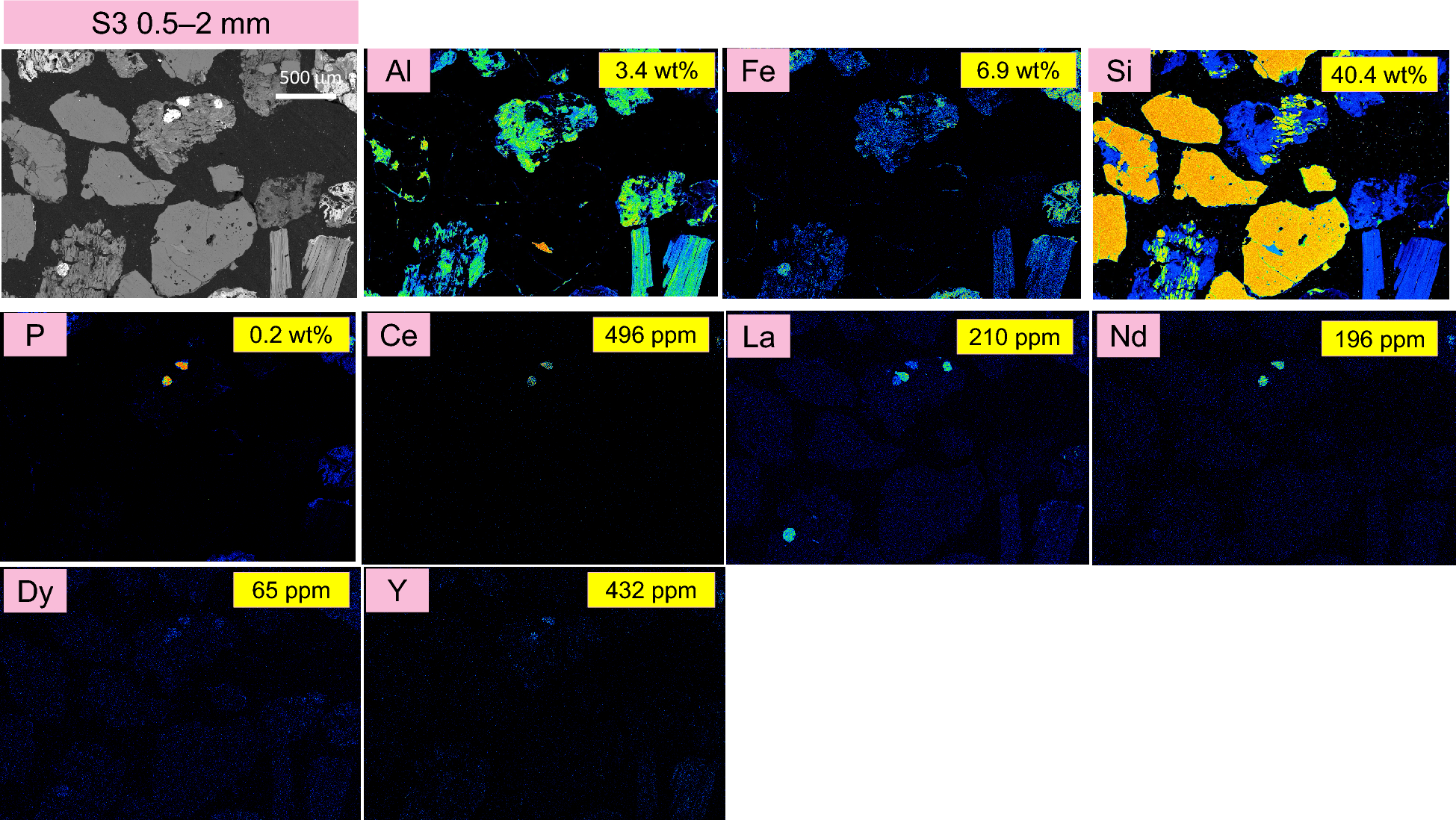

Figure 4

EPMA back scattered electron image and elemental mapping results for the target elements: Al, Fe, Si, P, Ce, La, Nd, Y, and Dy in S3 (0.5–2 mm) size fraction of the ion-adsorption clay. For comparison, the compositional analysis obtained from ICP-OES and ICP-MS are presented in yellow boxes on each panel.
