Figure 10

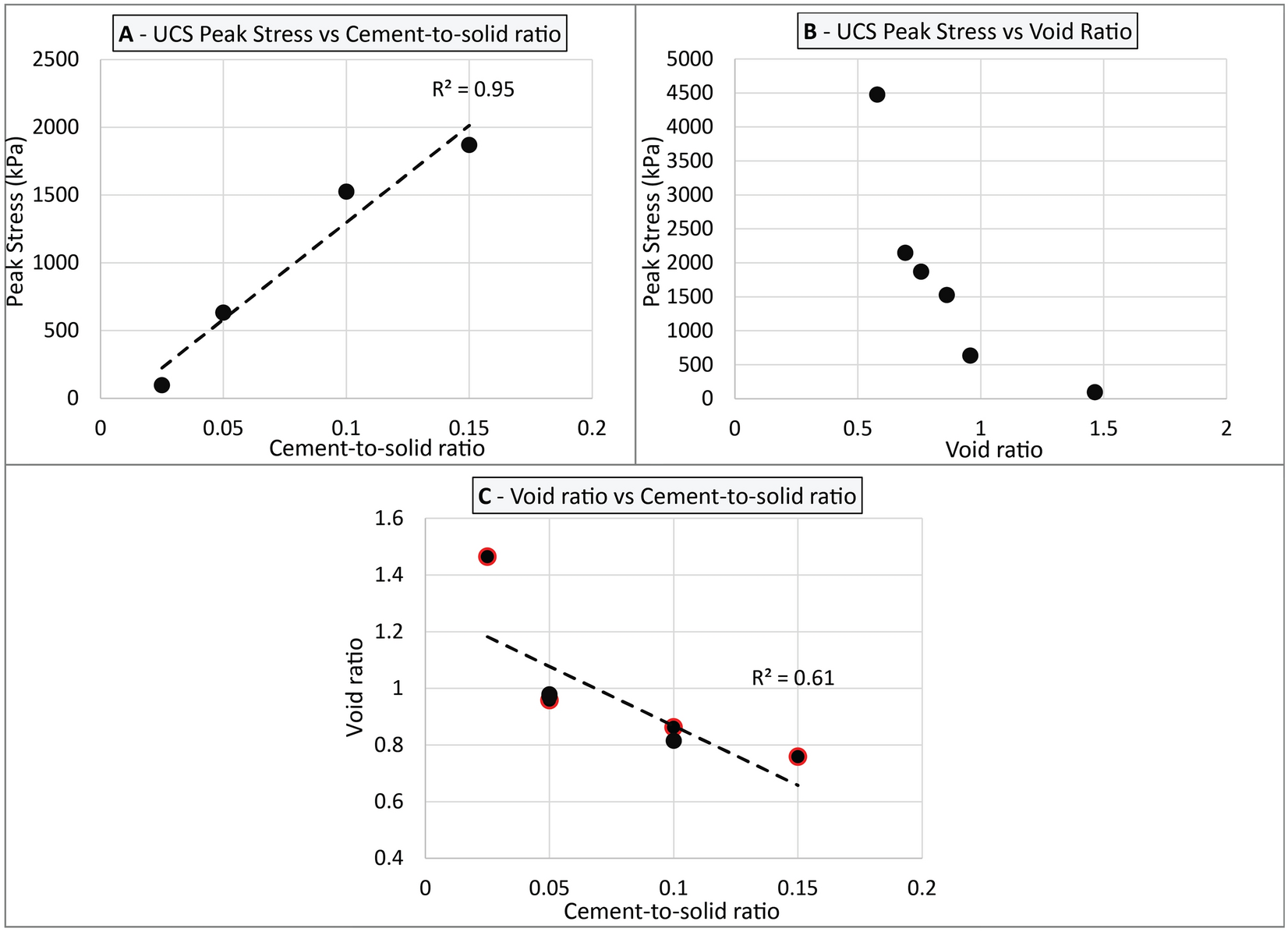

Properties of NSG-rich grainstone cemented as a result of marine diagenesis—(A) UCS Peak stress versus cement-to-solid ratio; (B) UCS Peak stress versus void ratio; (C) void ratio versus cement-to-solid ratio; Red labels indicate void ratio values that were calculated using dry density values from UCS tests.
