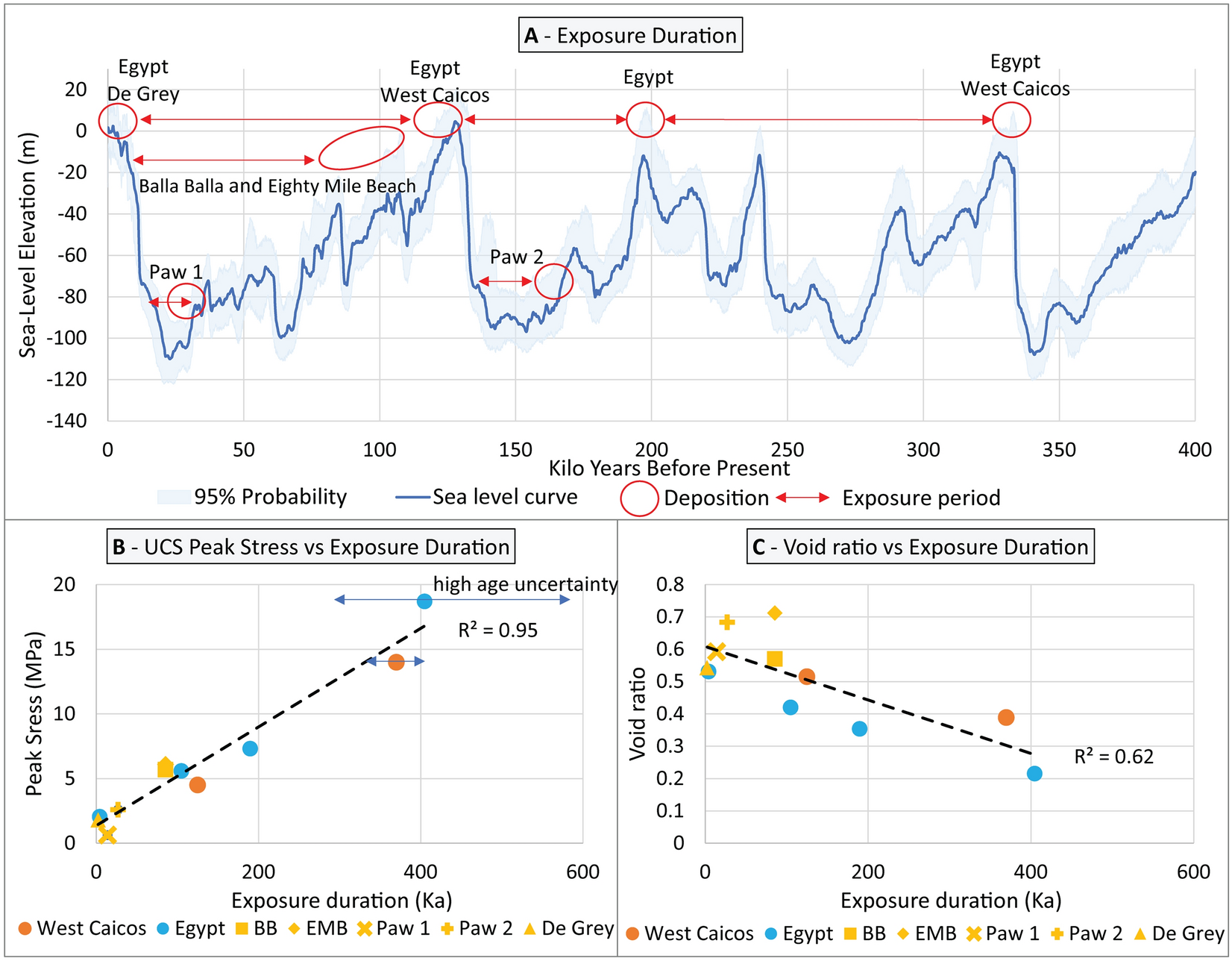

Figure 12
Comparison between the duration of meteoric cementation, the compressive strength and the void ratio using age data from Lebrec et al.38 and Lebrec et al.26—(A) illustration of the correction required to obtain the duration of exposure from Grant et al.81 RSL curve; (B) Average interval dry UCS Peak stress versus Exposure Duration, supplemented with data from Egypt68,82,83 and West Caicos72; (C) average interval void ratio versus age of deposition.
