Figure 2 | Scientific Reports

Figure 2

From: A study of the effects of early diagenesis on the geotechnical properties of carbonate sediments (North West Shelf, Australia)

Figure 2

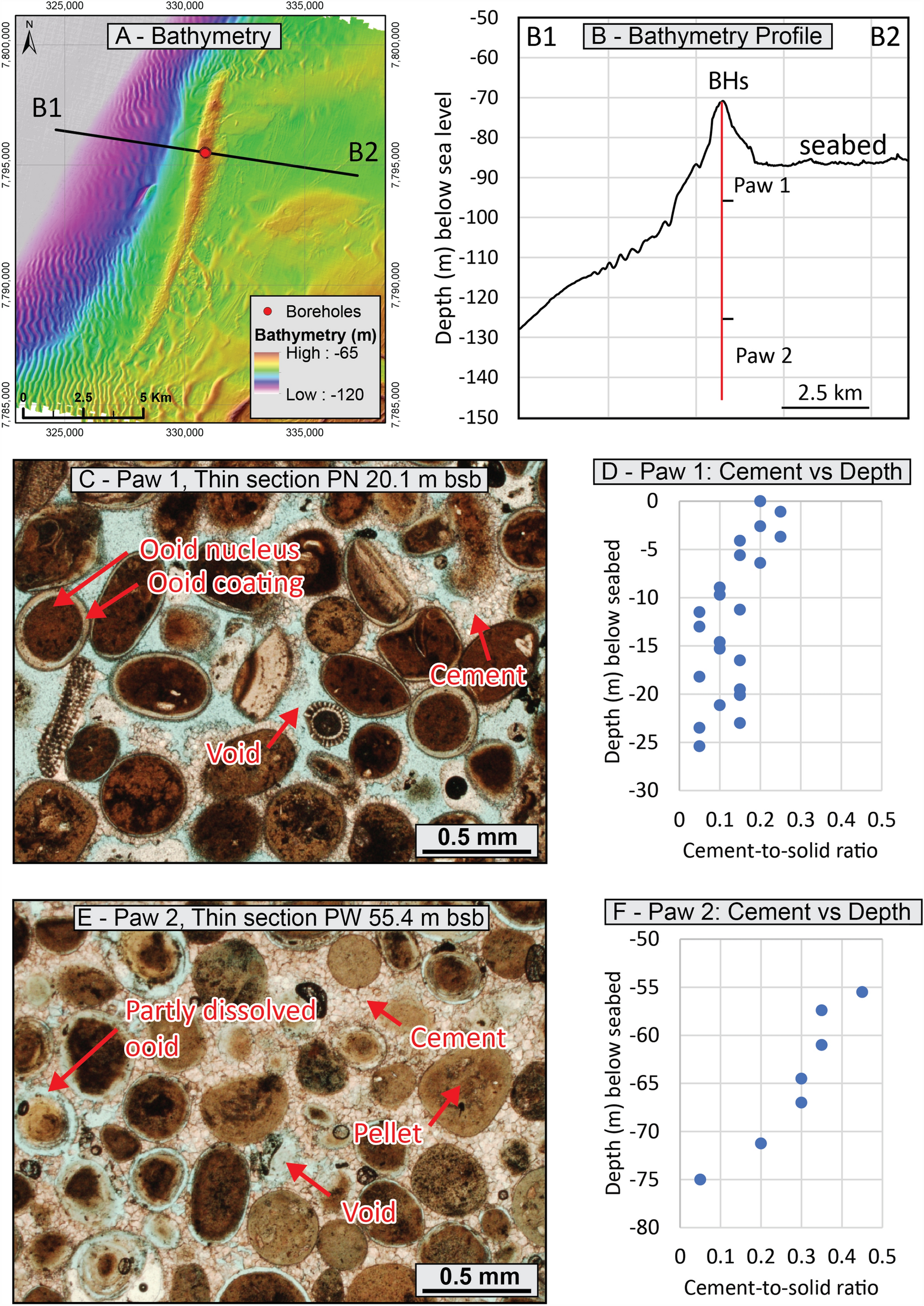

Paw Ridge sedimentary units—(A) Seabed morphology and borehole locations; (B) Bathymetry profile; (C) Paw 1 (uppermost interval) sedimentary microfacies—note variable cement infill; (D) Paw 1 evolution of the cement-to-solid ratio with depth; (E) Paw 2 (lowermost interval) sedimentary microfacies; (F) Paw 2 evolution of the cement-to-solid ratio with depth; Digital elevation model courtesy of the Centre for Energy and Climate Geoscience industry partners.
