Figure 12
From: Millimeter wave negative refractive index metamaterial antenna array

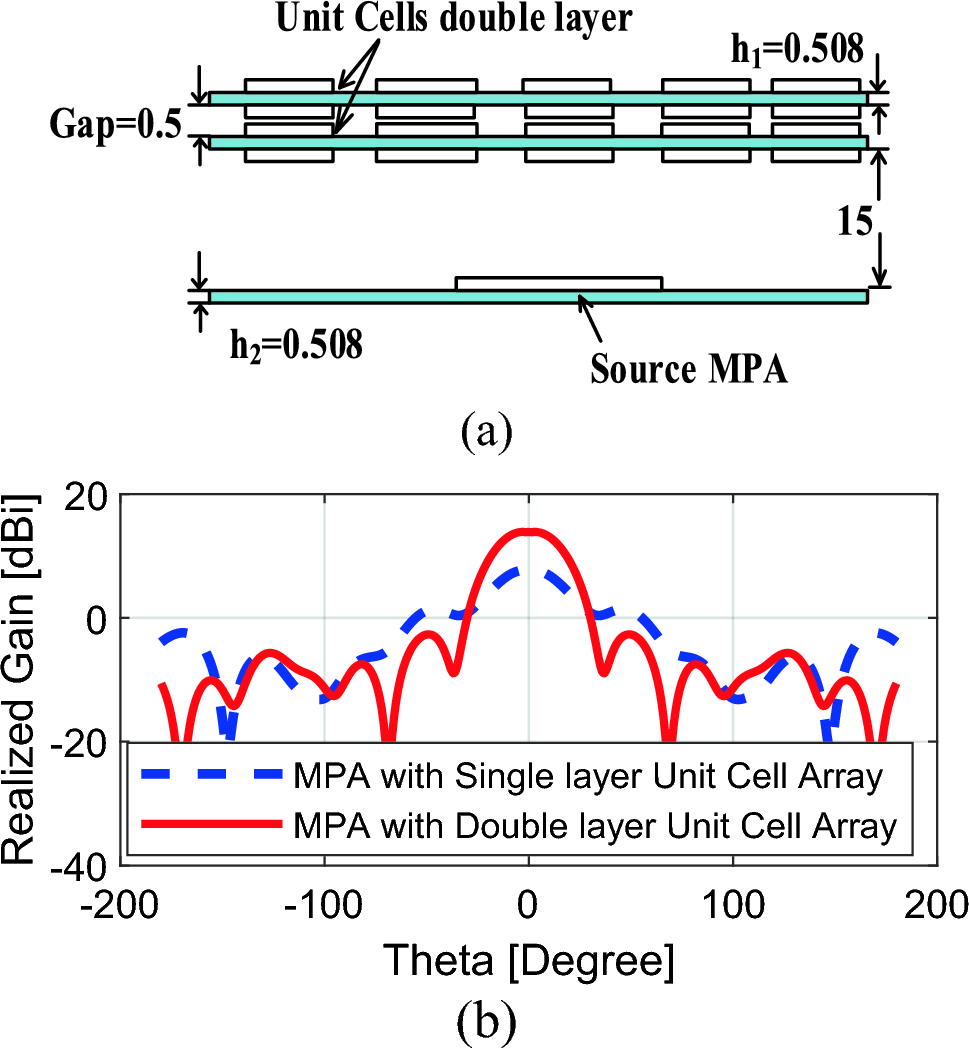

Cartesian plots of MPA with single and double layers of 5 × 5 unit cell array: (a) the arrangement of the two identical unit cell layers (all dimensions in millimeters); (b) realized gain of the MPA with a single and double unit cell arrays.
