Figure 13
From: Millimeter wave negative refractive index metamaterial antenna array

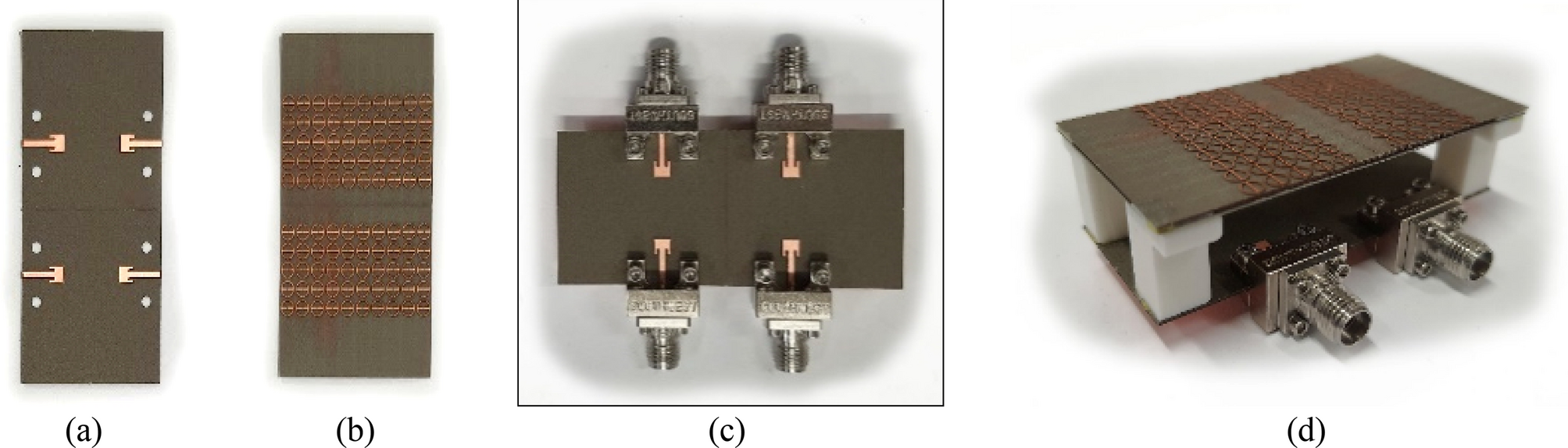

Fabricated array prototype: (a) 2 × 2 array, (b) unit cell layer, (c) 2 × 2 array with four ports, (d) perspective view of the 2 × 2 antenna array system with N-MTM.
