Figure 17
From: Millimeter wave negative refractive index metamaterial antenna array

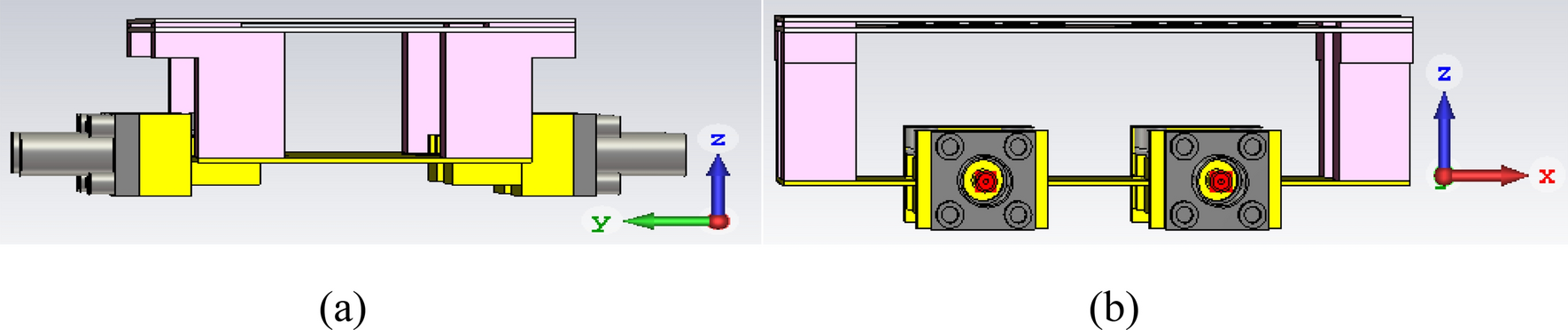

CST Simulation Setup, (a) 2 × 2 antenna array system with N-MTM H—Plane (YOZ), (b) 2 × 2 antenna array system with N-MTM E—Plane (XOZ).
