Figure 12
From: Experimental system and method of aerobic thermal environment simulation based on laser heating

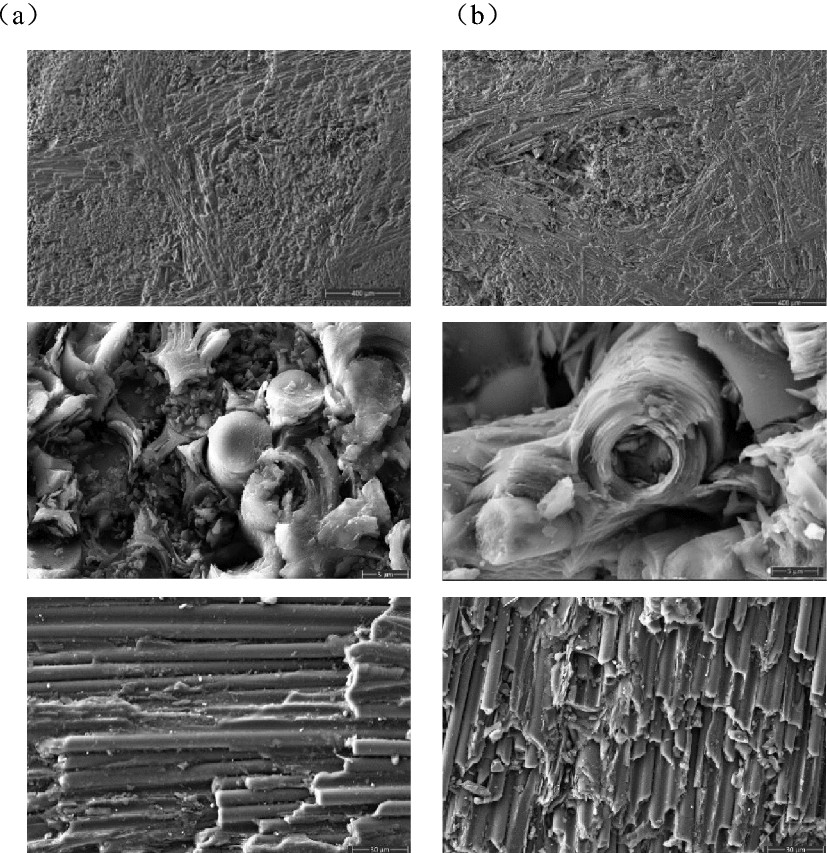

SEM images of the fracture surface of C/C after laser irradiation:(a) before laser irradiation, (b) after laser irradiation.
