From: Brain activity changes after high/low frequency stimulation in a nonhuman primate model of central post-stroke pain

Figure 2

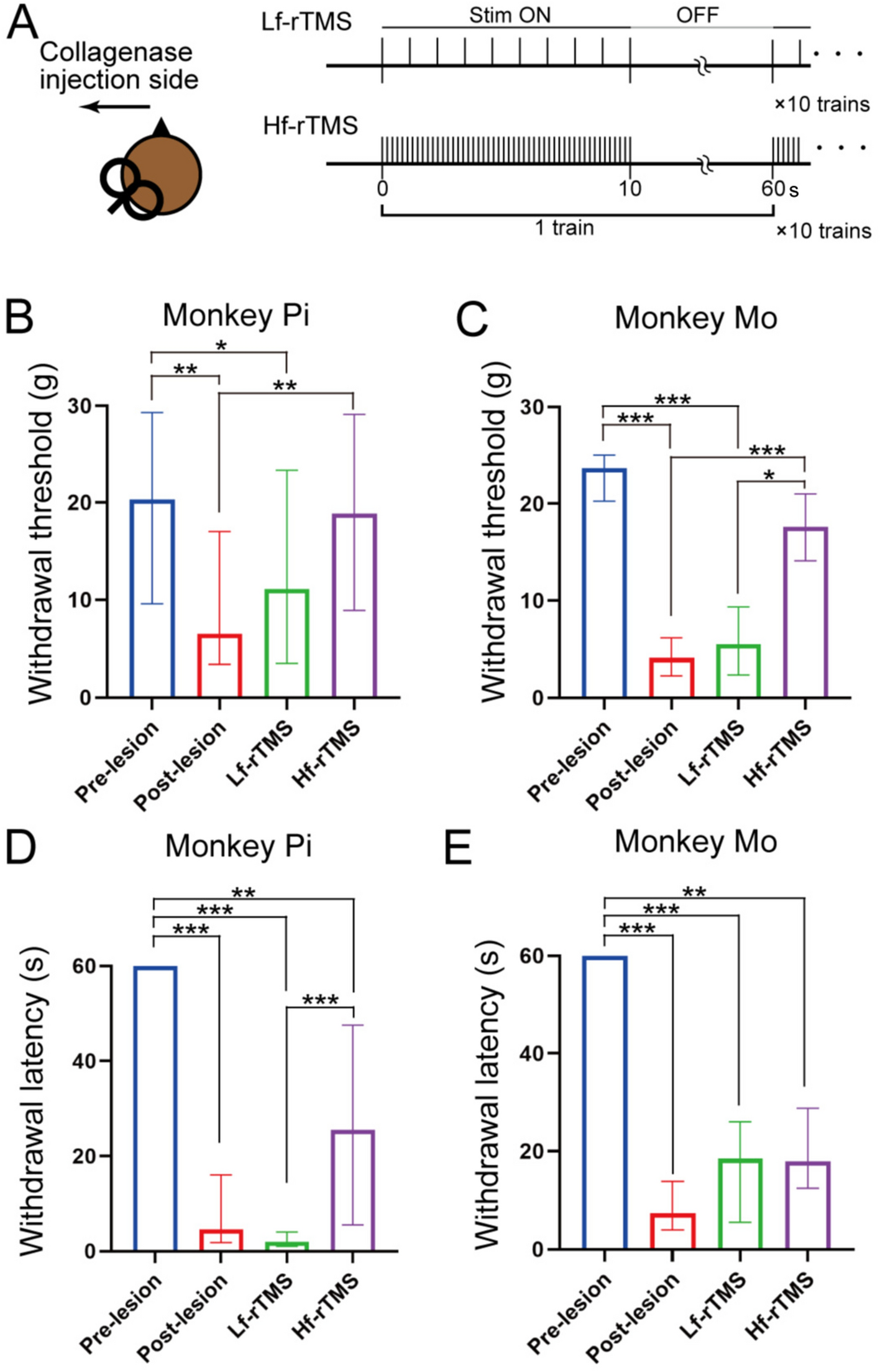

Effect of repetitive transcranial magnetic stimulation on withdrawal threshold. (A) rTMS protocol. Coils were placed in M1 on the side of collagenase injection and magnetic stimulation was administered at 1 or 5 Hz. (B, C) Changes in withdrawal threshold to mechanical stimulation. (D, E) Changes in withdrawal latency to thermal stimulation (50 °C). Data are expressed as median and interquartile ranges. *p < 0.05, **p < 0.01, ***p < 0.001 (Mann–Whitney U test with Bonferroni correction followed by Kruskal–Wallis test).
