Figure 3
From: Genuine anodic and cathodic current components in cyclic voltammetry

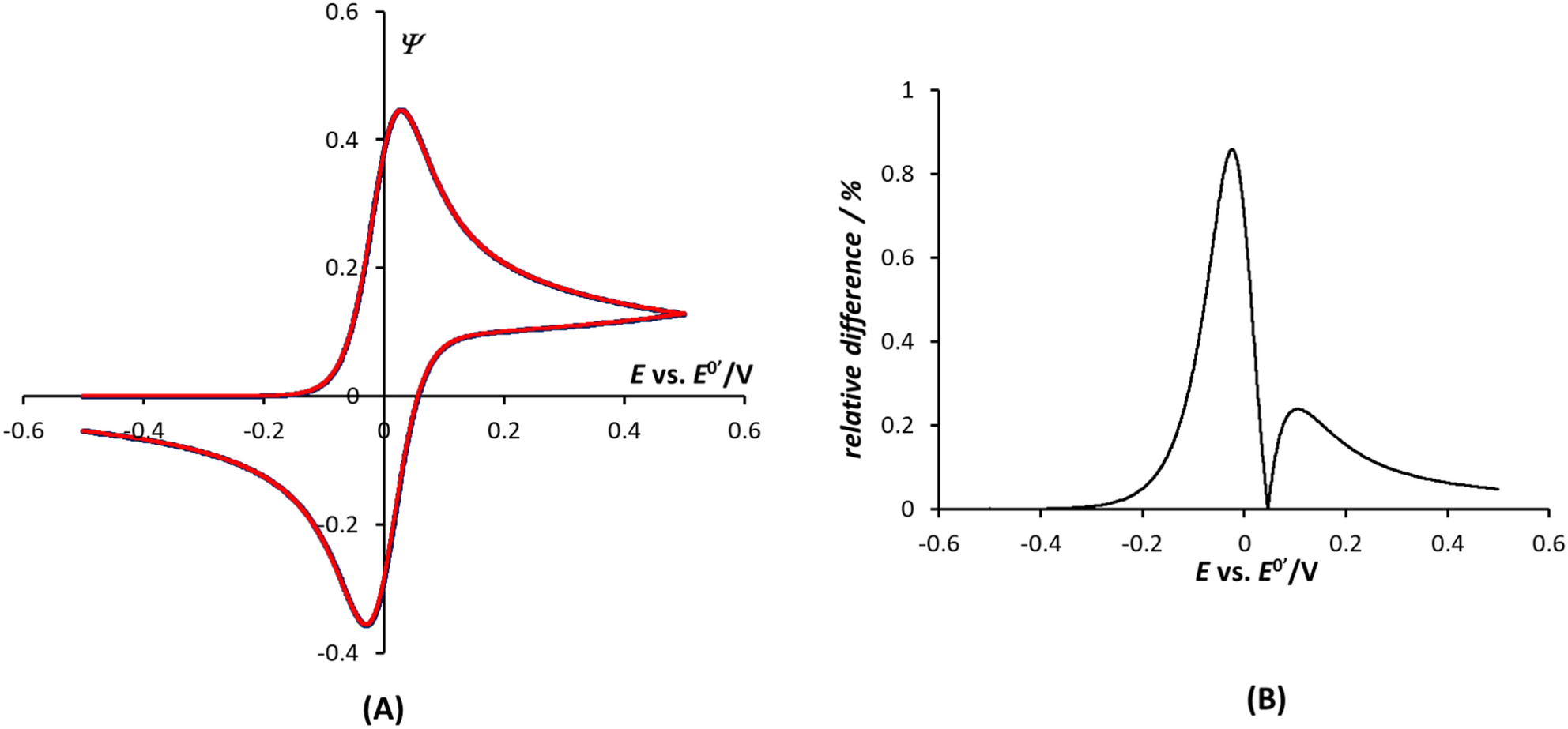

(A) Conventional cyclic voltammograms of very fast, apparently reversible electrode reaction characterized with the electrode kinetic parameter \(\kappa\) = 50.1 (red circles) and true reversible electrode reaction (blue solid line). (B) Relative variance between the currents of the voltammograms from panel (A) calculated for the first anodic half-cycle, calculated as \(\frac{{\left| {{\varPsi}\left( {\kappa = 50} \right) -{\varPsi}\left( {{rev}} \right)} \right|}}{{\left| {{\varPsi}\left( {\kappa = 50} \right)} \right|}}100{\text{\% }}\).
