Figure 7
From: Power system fault diagnosis with quantum computing and efficient gate decomposition

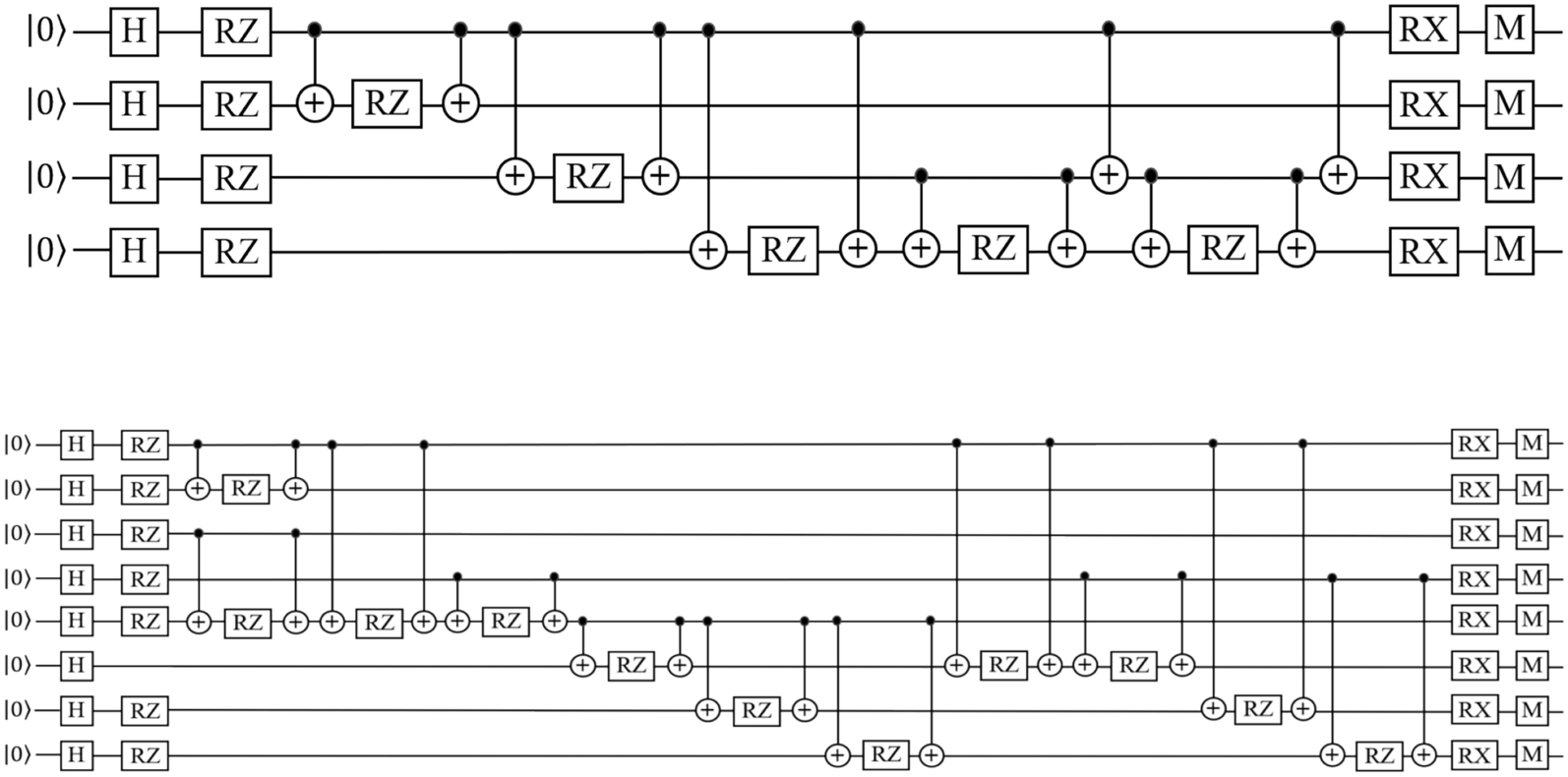

The quantum circuit of test 3 using Symmetric Equivalent Decomposition (SED) and Global Variable Substitution Method (GVS). The upper figure shows the circuit using SED, while the lower figure shows the circuit using GVS.
