From: Resilience of soybean genotypes to drought stress during the early vegetative stage

Figure 1

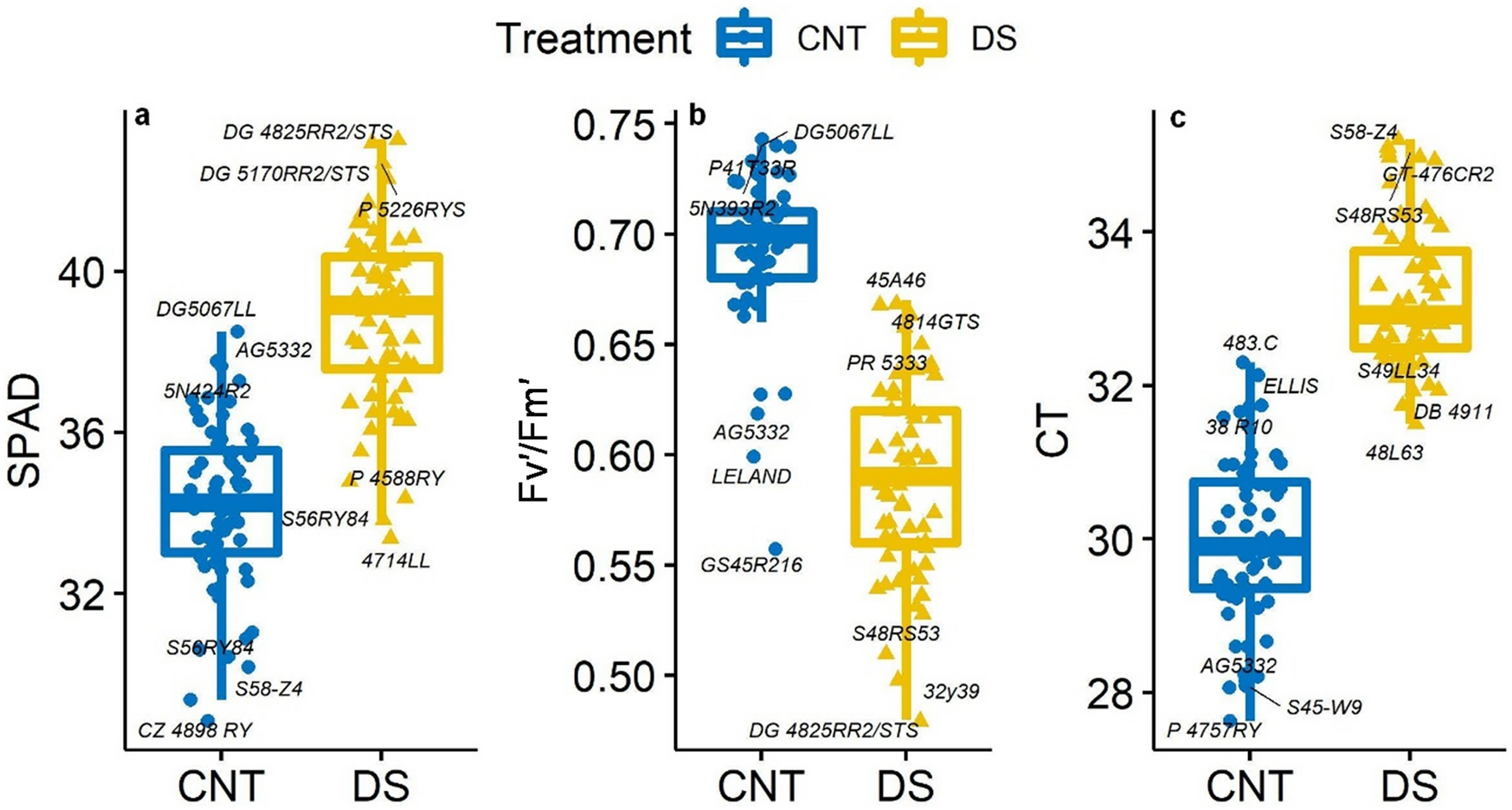

Boxplots showing the differences in chlorophyll index (SPAD, a), chlorophyll fluorescence (Fv′/Fm′, b), and canopy temperature (CT °C, c) of 64 soybean genotypes under control (CNT) and drought (DS). The whiskers indicate the interquartile range, and the outer dots are outliers. The middle line represents the mean of the 64 genotypes, and the box shows the range of the 25th–75th percentiles of the data.
