Figure 7
From: Design and field experiment of Codonopsis pilosula film covering transplanter

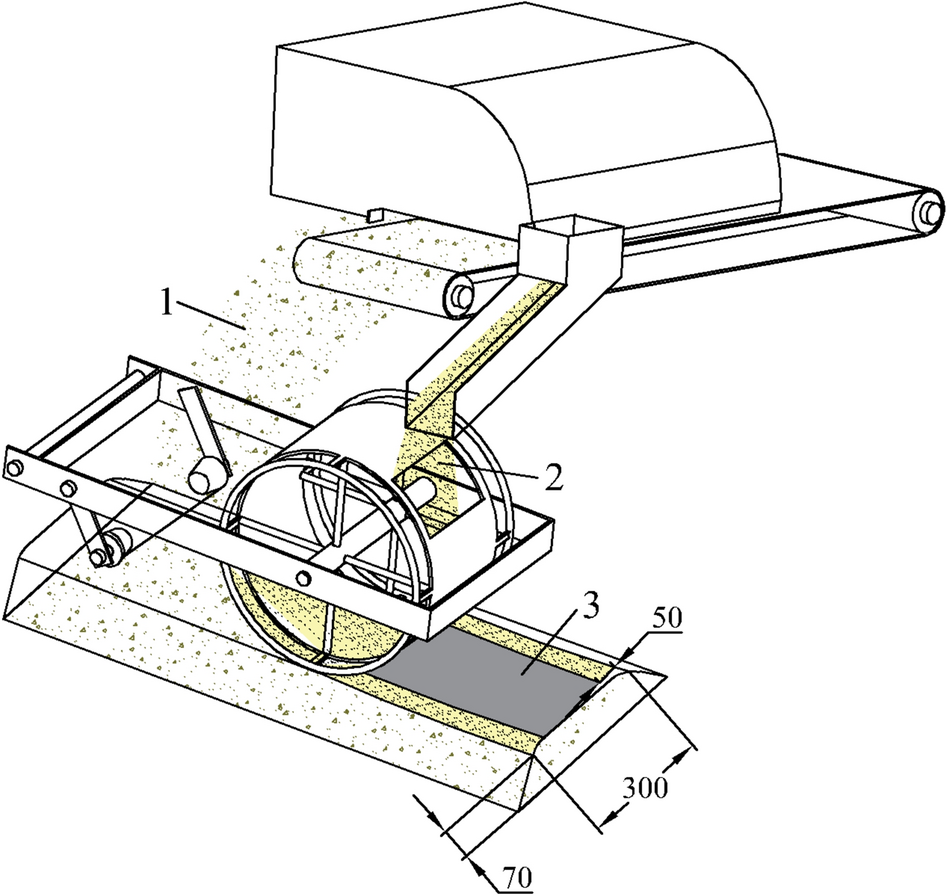

Schematic for soil cover analysis. 1. Soil coverage of seedbed. 2. Soil coverage at the edge of the membrane. 3. Plastic mulch film.
