From: Molecular characteristics and oncogenic role of CHD family genes: a pan-cancer analysis based on bioinformatic and biological analysis

Figure 3

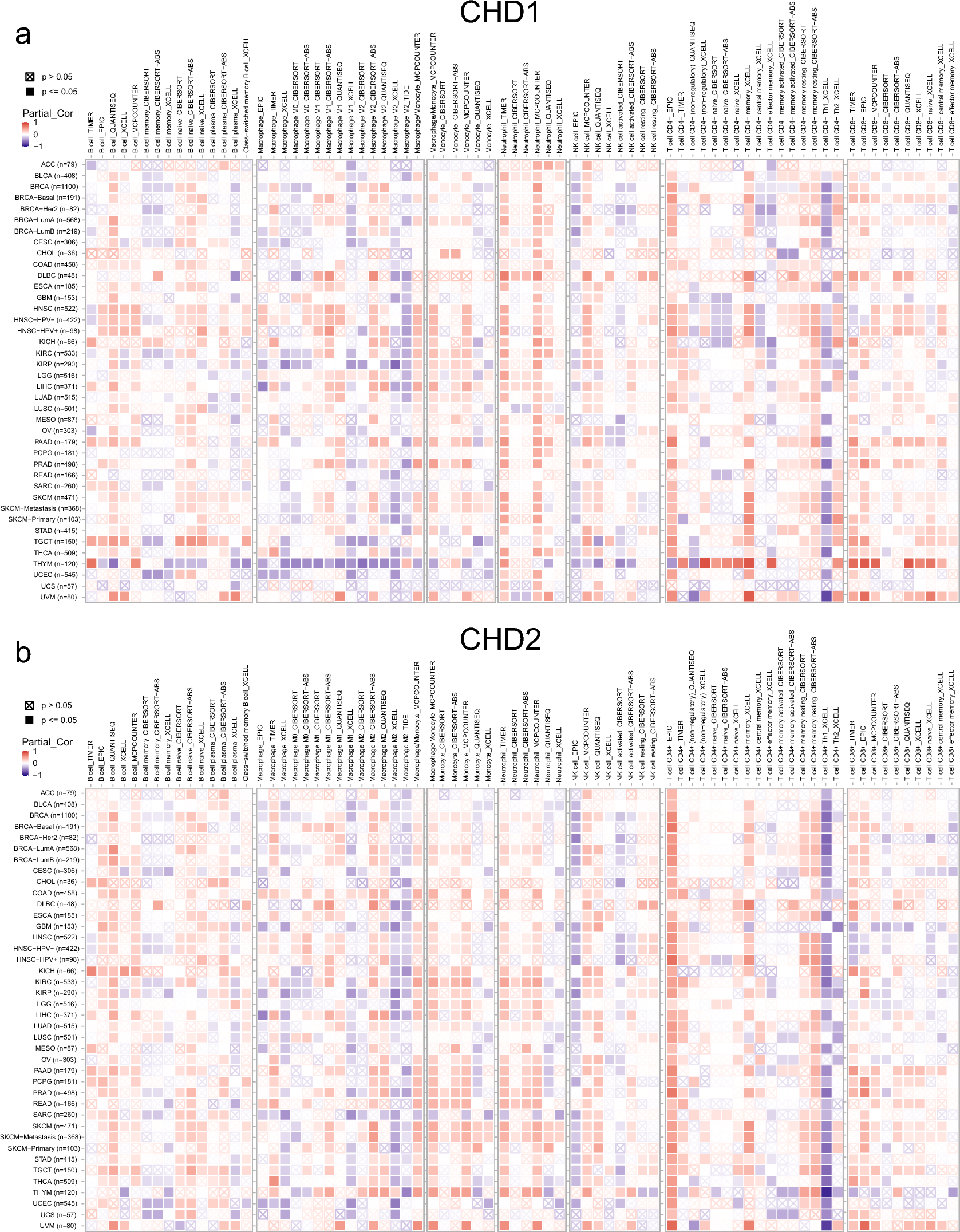

The correlation between the expression of CHD gene family and immune infiltration. (a) The correlations between CHD1 expression and immune infiltration in B cells, T cells, monocytes, macrophages, neutrophils and NK cells with various analyzing methods. (b) The correlations between CHD2 expression and immune infiltration in B cells, T cells, monocytes, macrophages, neutrophils and NK cells, employing various methods. Cancer types and sample number were indicated on the left. Cell types and analyzing methods were indicated above. The results are represented in correlation matrices, highlighting positive (red rectangle) and negative (blue rectangle) partial correlations (P < 0.05).
