Figure 2

From: Correcting directional dark field x-ray imaging artefacts using position dependent image deblurring and attenuation removal

Figure 2

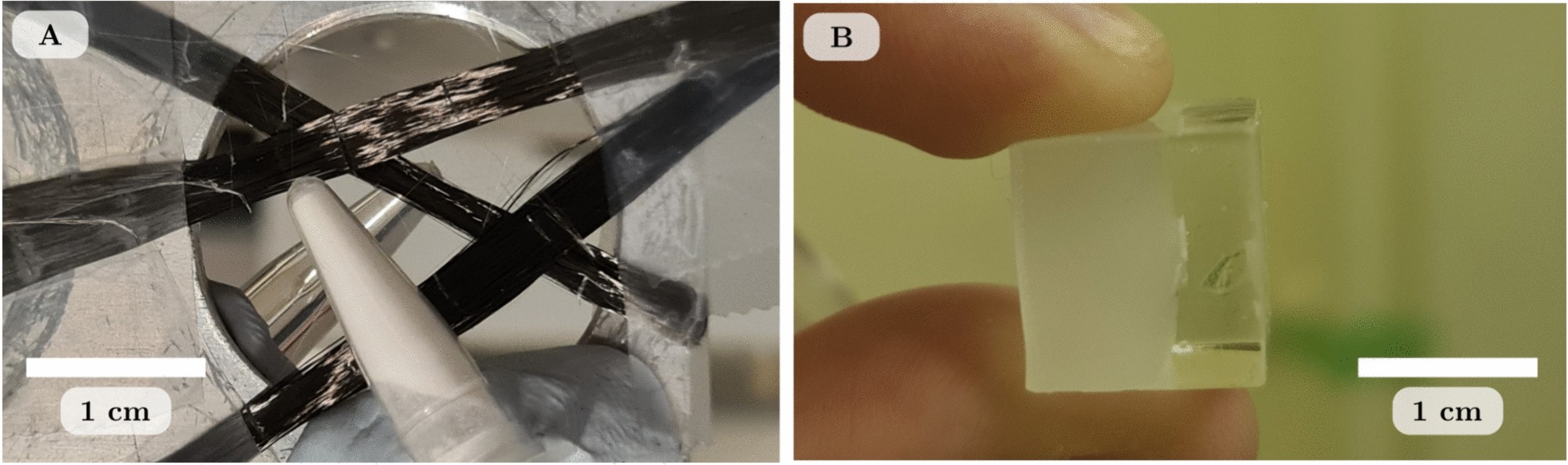

Photograph of the dark-field phantom (A) featuring three carbon fibre bundles (typical fibre width of approximately 4–10 \(\upmu\)m), a tube of water and a tube of 6 \(\upmu\)m diameter PMMA microspheres. Photograph of the resin sample (B) featuring seashell calcium carbonate flakes and cornflour mixed in with the resin (left portion of resin cube).
