Figure 6

From: Non-invasive detection of hazardous materials with a thermal-to-epithermal neutron station: a feasibility study towards practical application

Figure 6

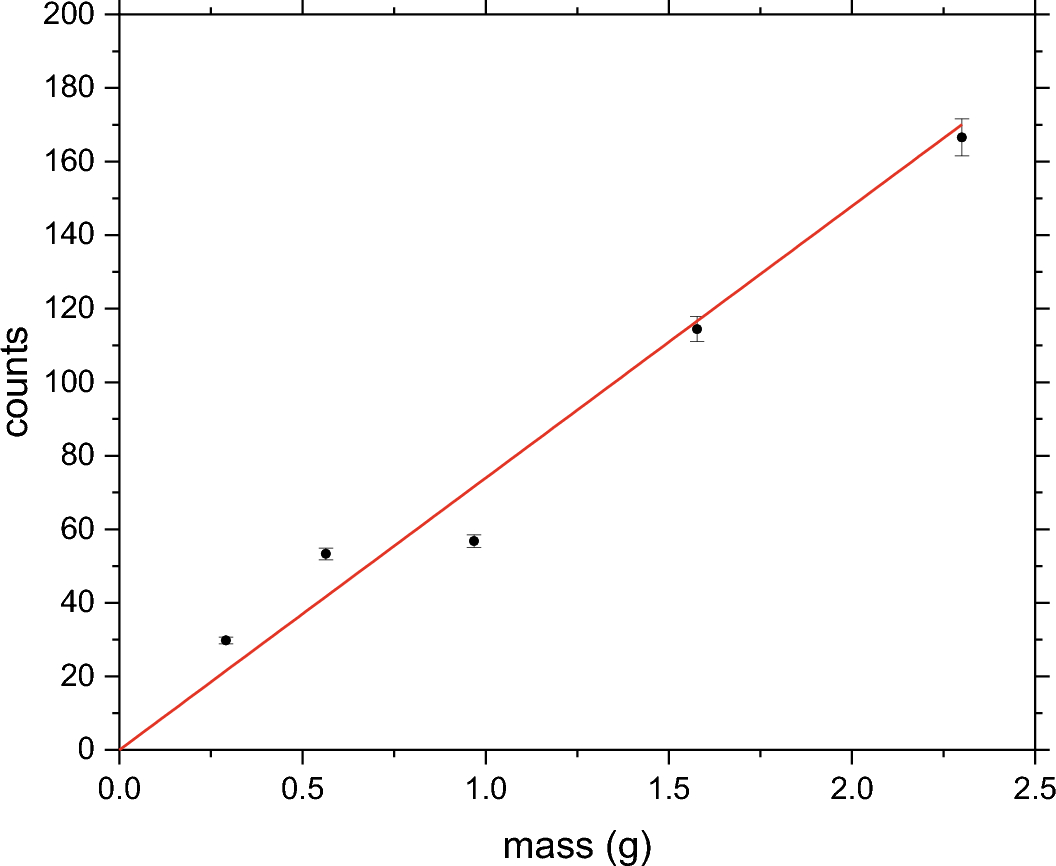

The sensitivity curve for the melamine sample. Total integrated intensities of the nitrogen recoil peaks recorded in backscattering NCS experiments are plotted as a function of the sample mass. The data are plotted as solid black points with error bars. The fitted linear relationship between the counts and the mass is shown as a solid red line. See text for details.
