Figure 9

From: Non-invasive detection of hazardous materials with a thermal-to-epithermal neutron station: a feasibility study towards practical application

Figure 9

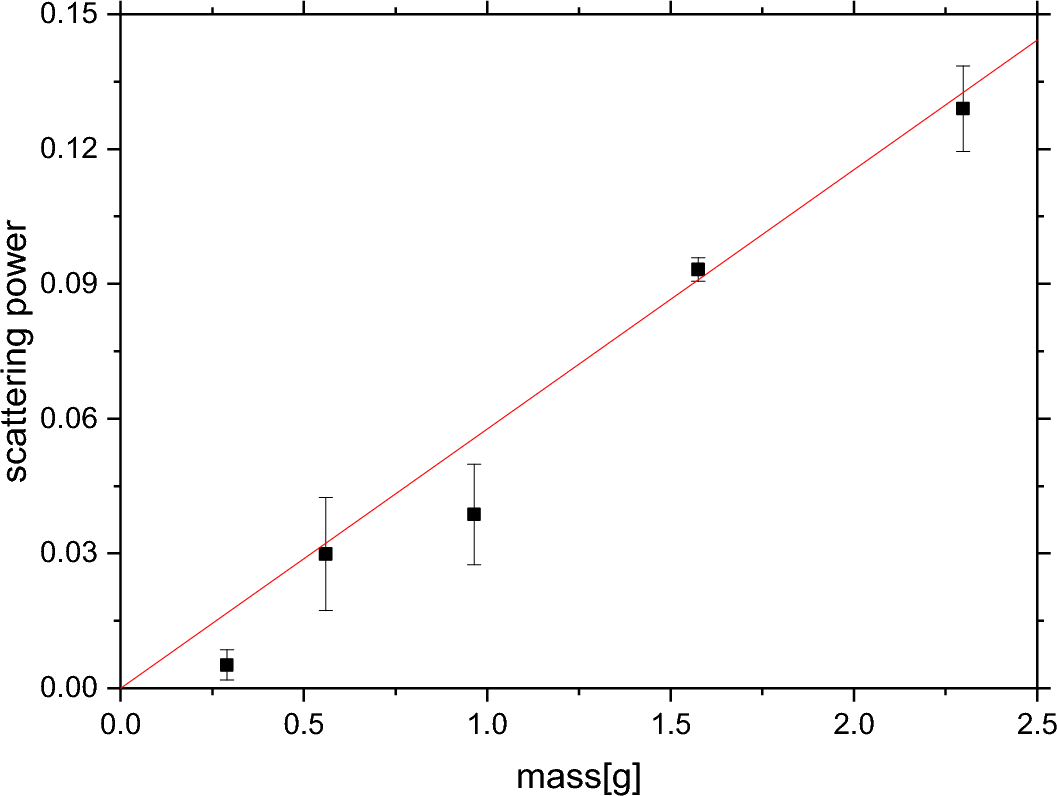

The sensitivity plot for the calculation of the values of the LOD and LOQ for the detection of melamine using the technique of incident neutron energy-dependent sample transmission. The values of the sample scattering power, S = 1–T(1–10 eV), have been calculated as weighted averages of the transmission curves in the epithermal incident neutron energy region and plotted as a function of the melamine sample mass.
