From: Triazine herbicide prometryn alters epoxide hydrolase activity and increases cytochrome P450 metabolites in murine livers via lipidomic profiling

Figure 8

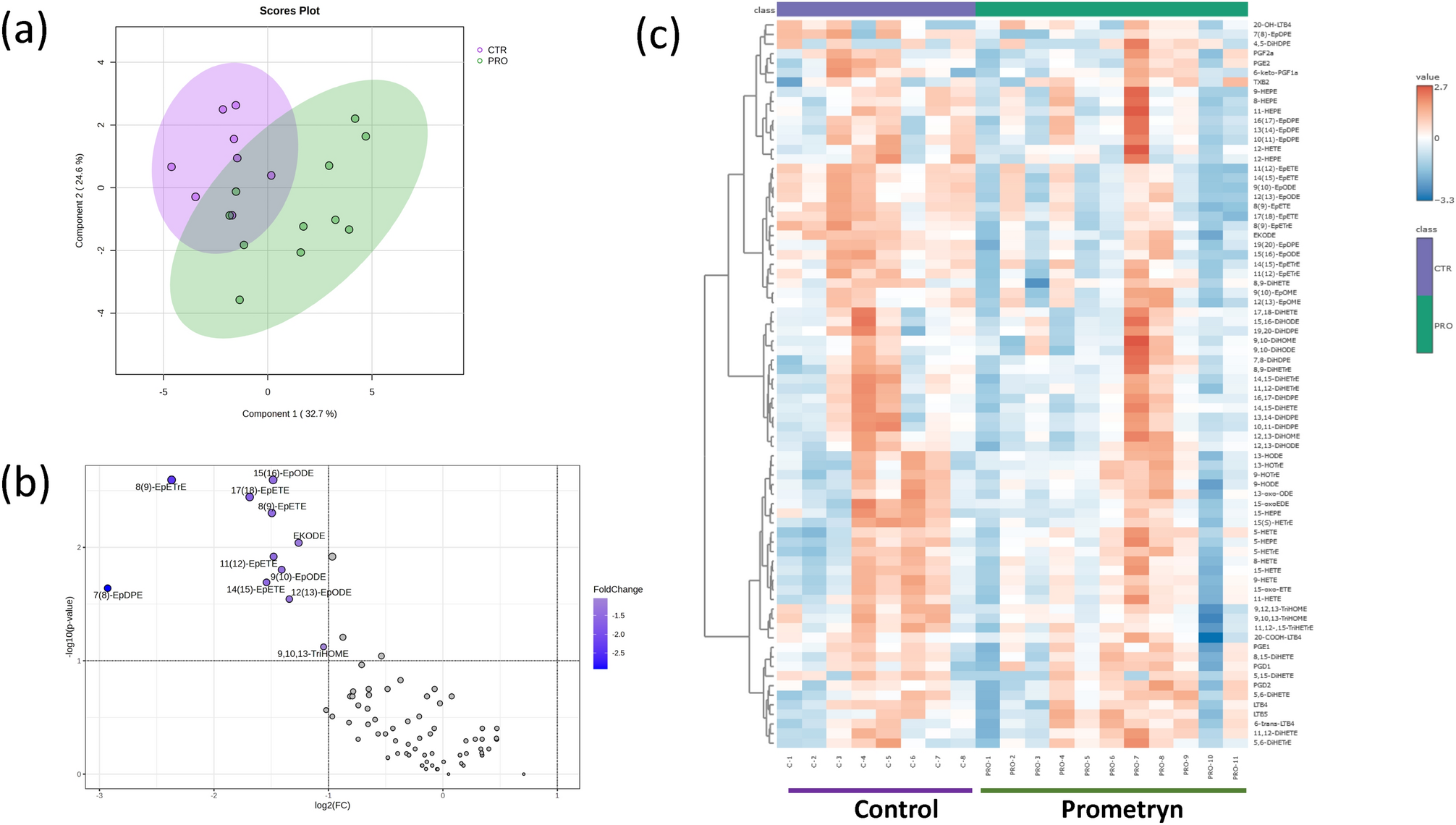

Oxylipin profiling in plasma from prometryn treated and control mice. (a) Sparse partial least squares-discriminant analysis (sPLS-DA) score plots of mice plasma treated with vehicle control and prometryn. (b) Volcano plot showing the fold change of significant oxylipins profile in vehicle control and prometryn treated groups in male mice plasma. (c) Heat map showing oxylipins profile shifted in vehicle control and prometryn treated groups in male mice plasma.
