Figure 7

From: Complex dynamics in nonlinear small time-delayed optoelectronic oscillator and application in fast reservoir computing and pulse generation

Figure 7

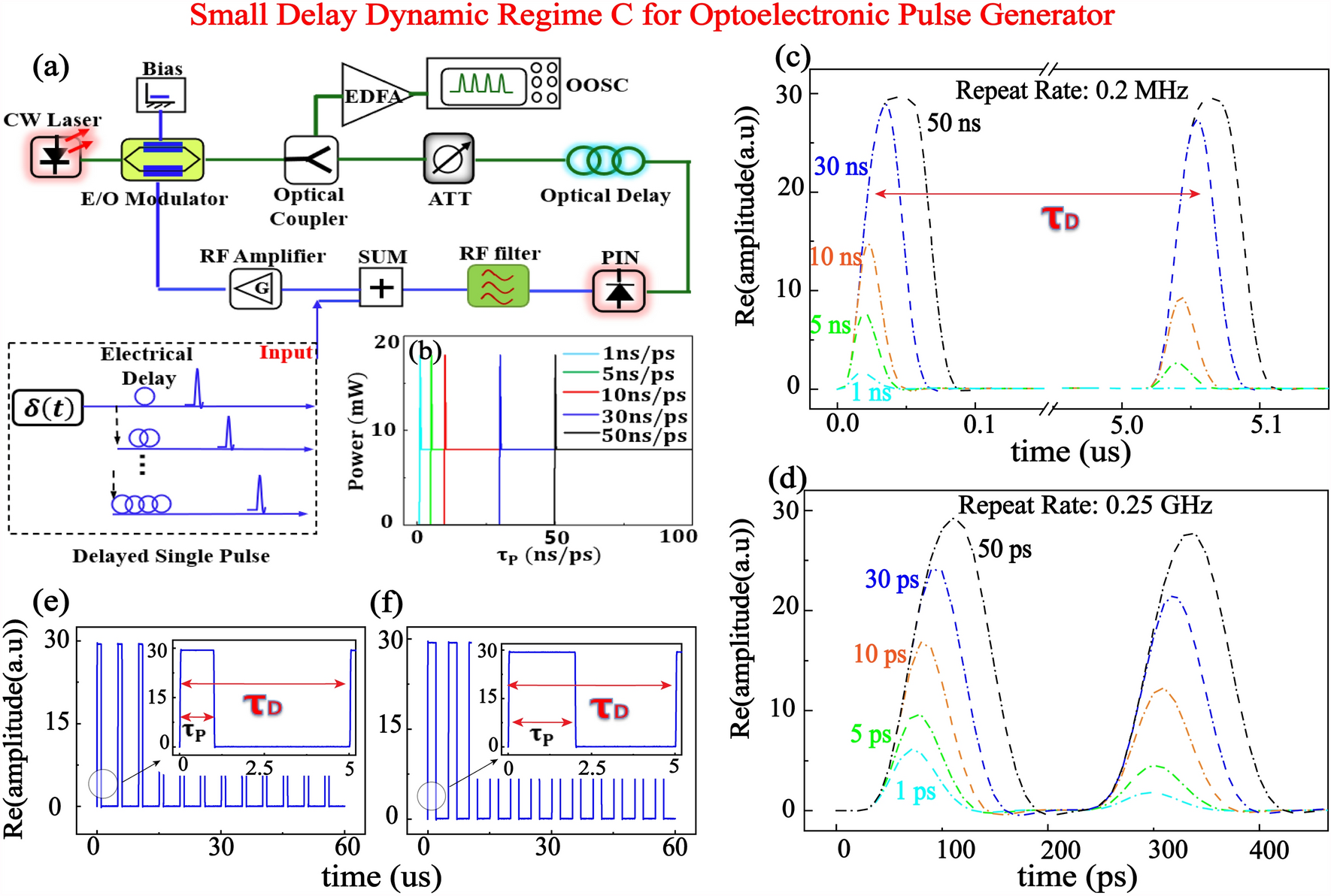

(a) Adjustable optoelectronic pulse generator. (b) Time delayed input single electrical pulse of both ns and ps time scale. (c, d) Generated ultralow jitter optical pulses of optoelectronic pulse generator at different time delayed input single electrical pulse from 1 to 50 ns and 1 to 50 ps. (e) and (f) Tunable pseudo duty cycle at fixed periodic oscillations.
