Figure 4 | Scientific Reports

Figure 4

From: Systematic review and meta-analysis of current evidence in uterine artery embolization vs myomectomy for symptomatic uterine fibroids

Figure 4

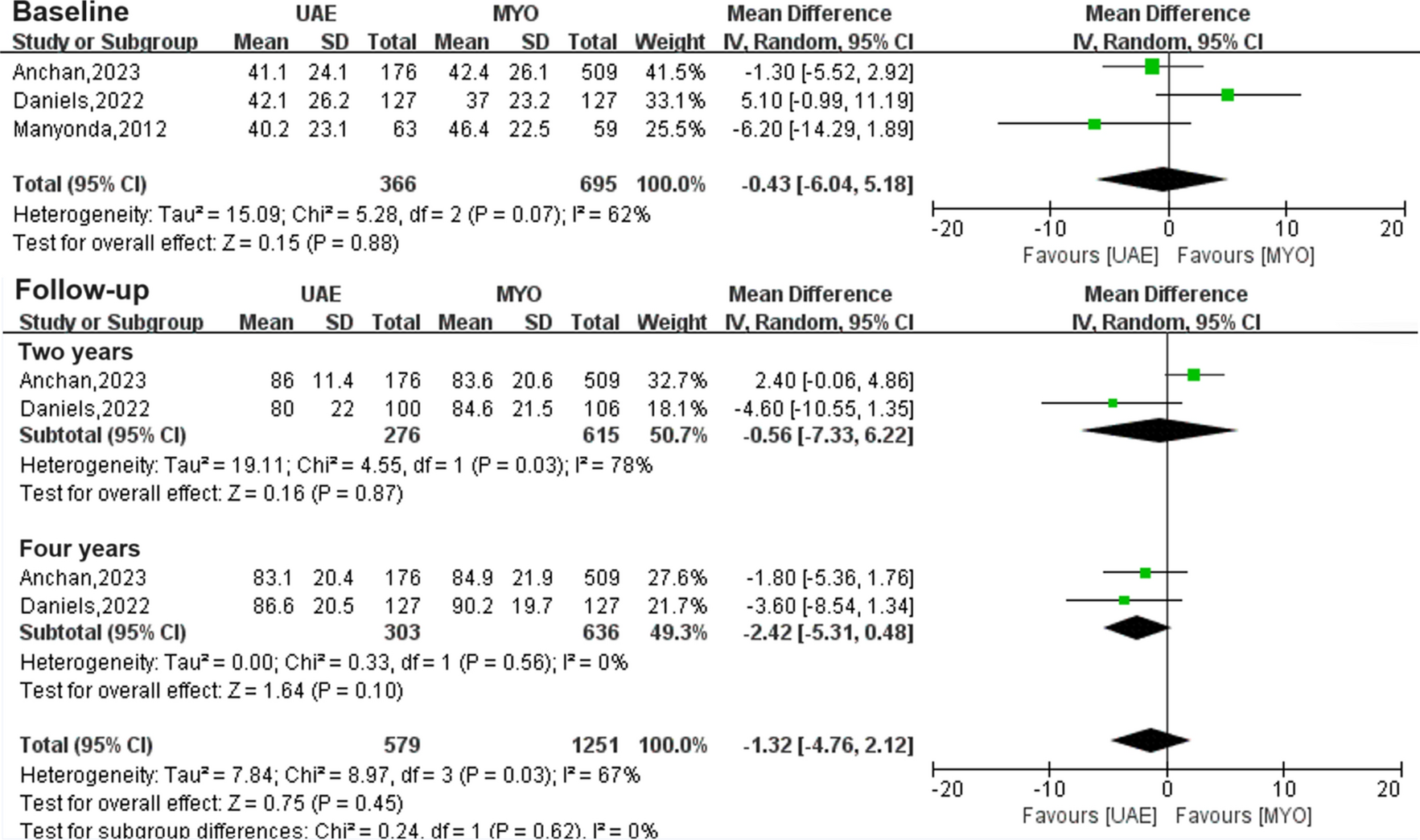

Forest plot indicating scores for health quality of life in different follow-ups after Uterine Artery Embolization (UAE) and Myomectomy (MYO) in the management of Uterine Fibroids (UFs). The solid squares denote the mean differences (MD), the horizontal lines represent the 95% confidence intervals (CIs), and the diamonds denote the pooled effect sizes.
