Figure 6

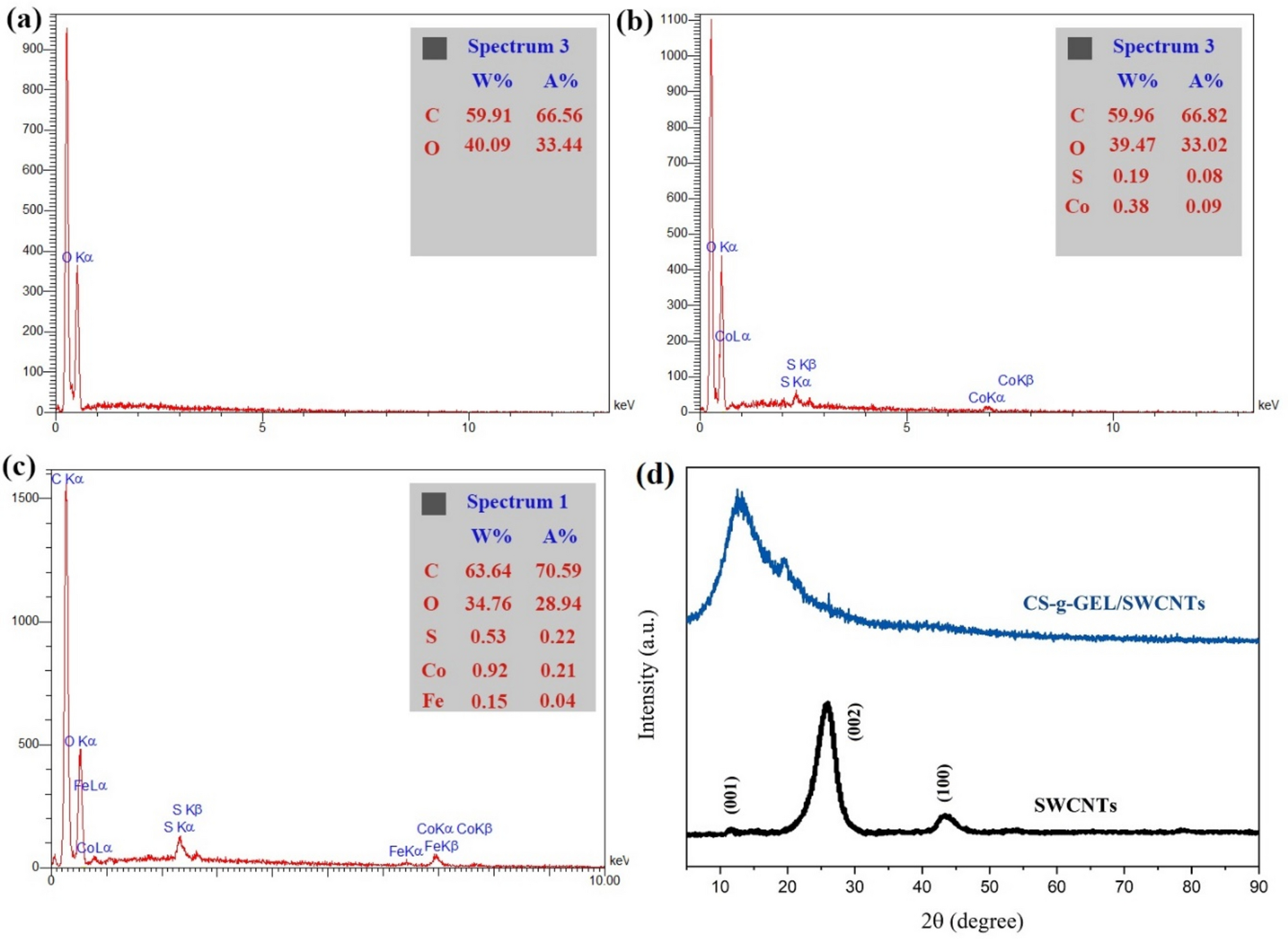

EDX analysis of CS-g-GEL (a) CS-g-GEL/SWCNTs (b), and CS-g-GEL/SWCNTs containing dye (c) hydrogels, and XRD analysis of SWCNTs and CS-g-GEL/SWCNTs hydrogel (d).
Figure 6 | Scientific Reports
EDX analysis of CS-g-GEL (a) CS-g-GEL/SWCNTs (b), and CS-g-GEL/SWCNTs containing dye (c) hydrogels, and XRD analysis of SWCNTs and CS-g-GEL/SWCNTs hydrogel (d).
