Figure 23
From: Simulation of CRISPR-Cas9 editing on evolving barcode and accuracy of lineage tracing

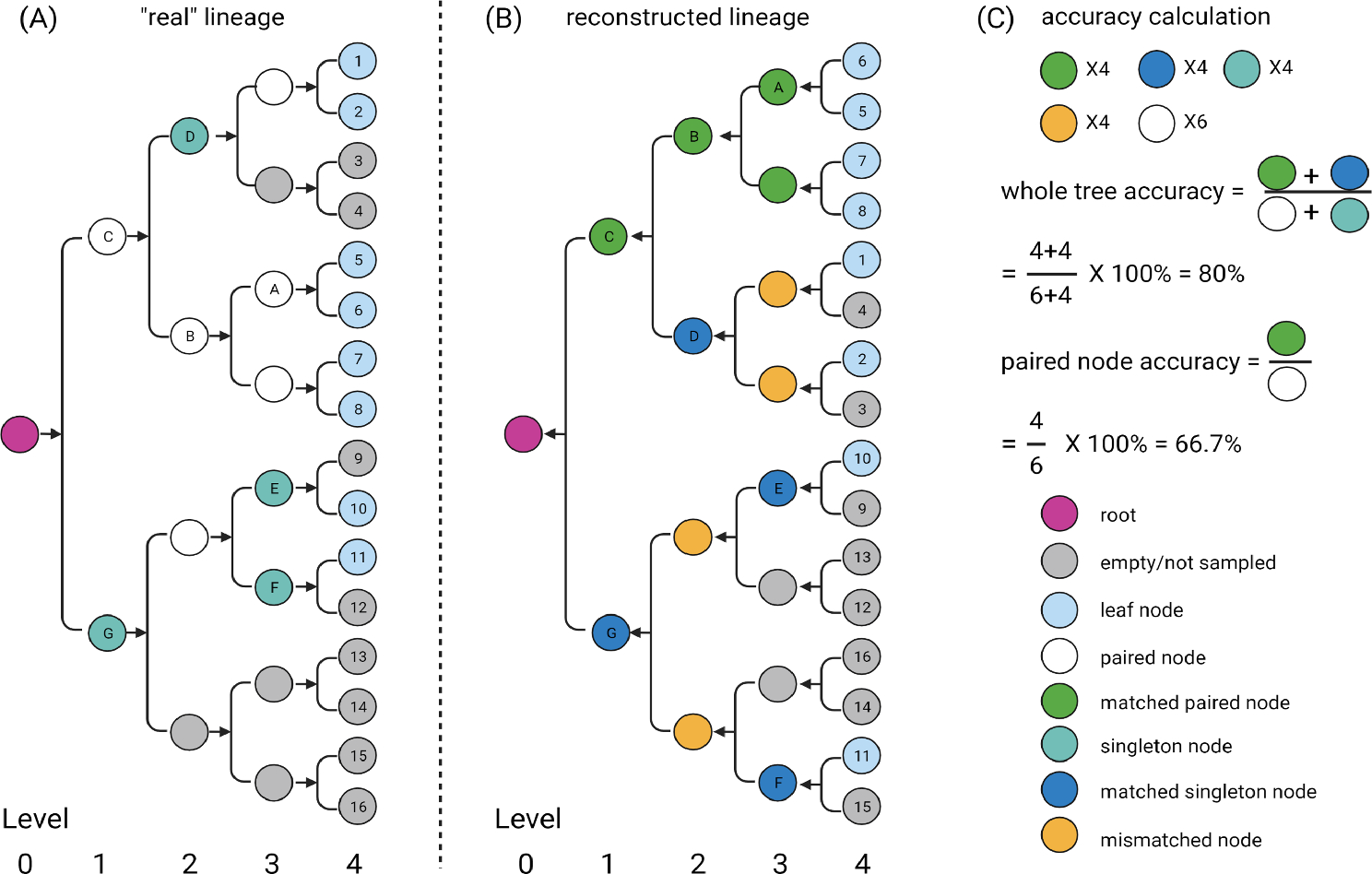

Partial lineage tree comparison. (A) The real lineage tree is not a full binomial tree. (B) Reconstructed lineage tree is compared to the real lineage tree. (C) Percentage of matched internal nodes and matched paired nodes are calculated, respectively.
