Figure 3
From: Robust post-processing time frequency technology and its application to mechanical fault diagnosis

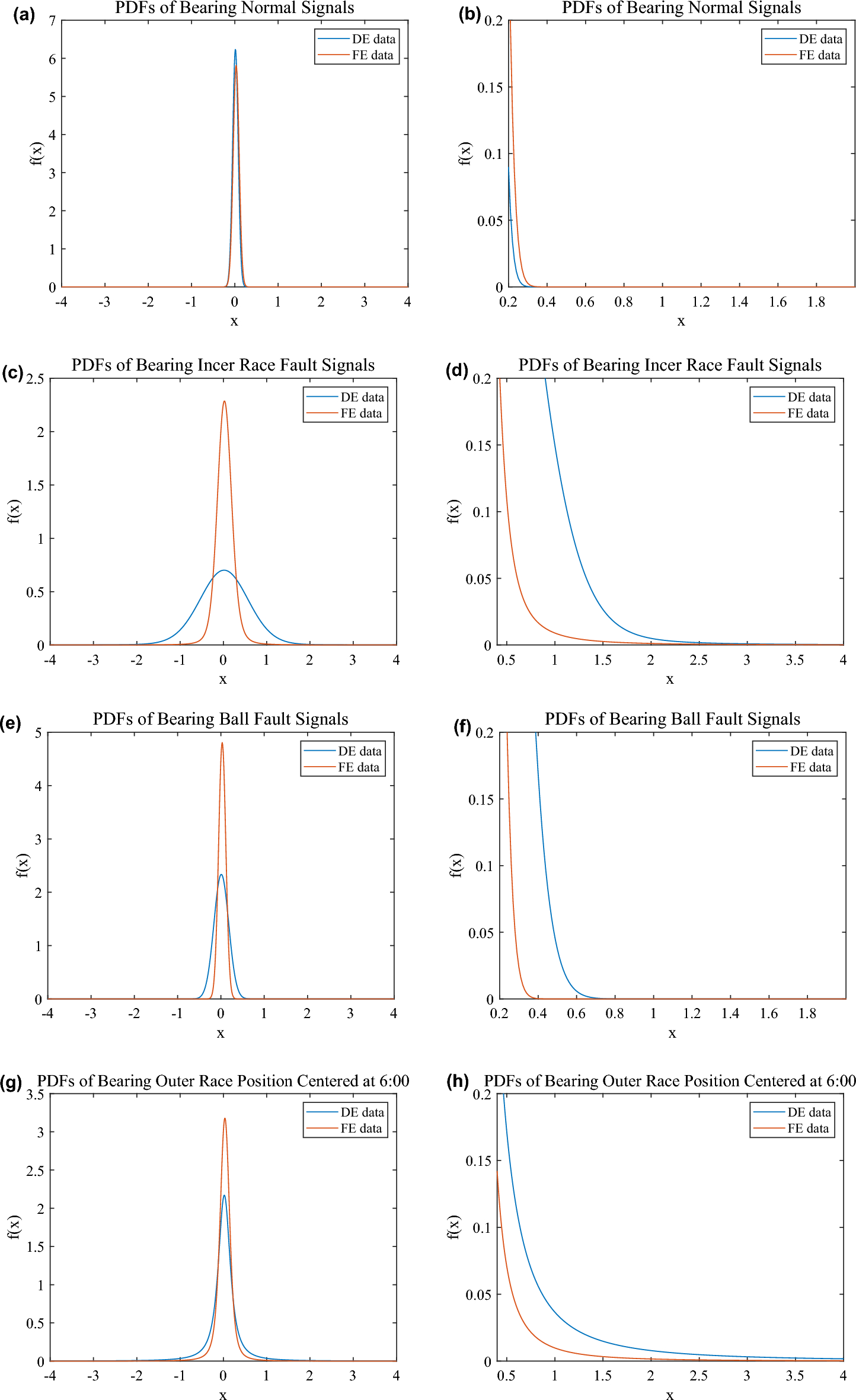

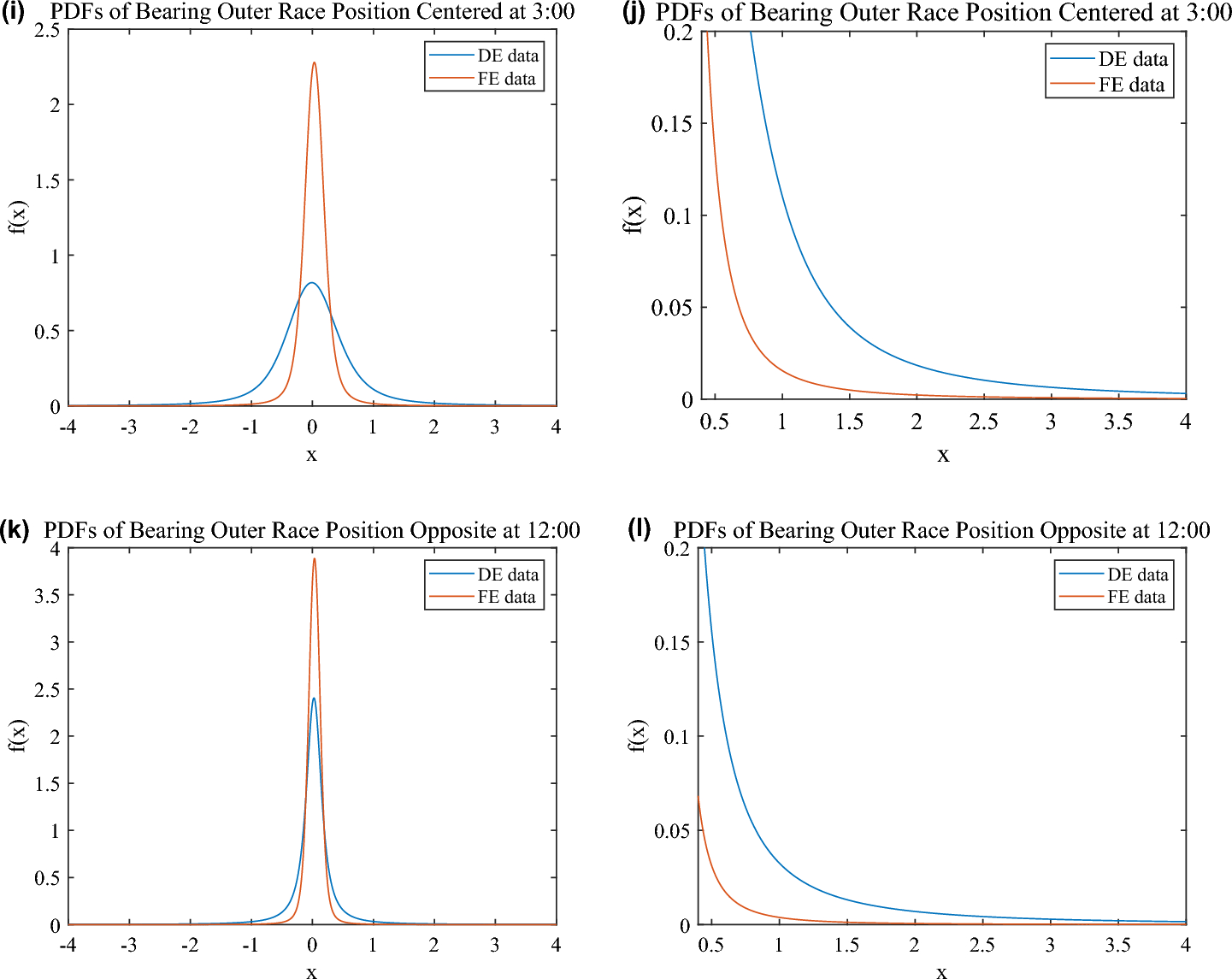

PDFs of the vibration signals. (a,b) Normal; (c,d) inner race; (e,f) ball; (g,h) outer race position relative to load zone centered at 6:00; (i,j) outer race at 3:00; (k,l) outer race at 12:00).
