From: Deformation-based morphometry applied to FDG PET data reveals hippocampal atrophy in Alzheimer’s disease

Figure 5

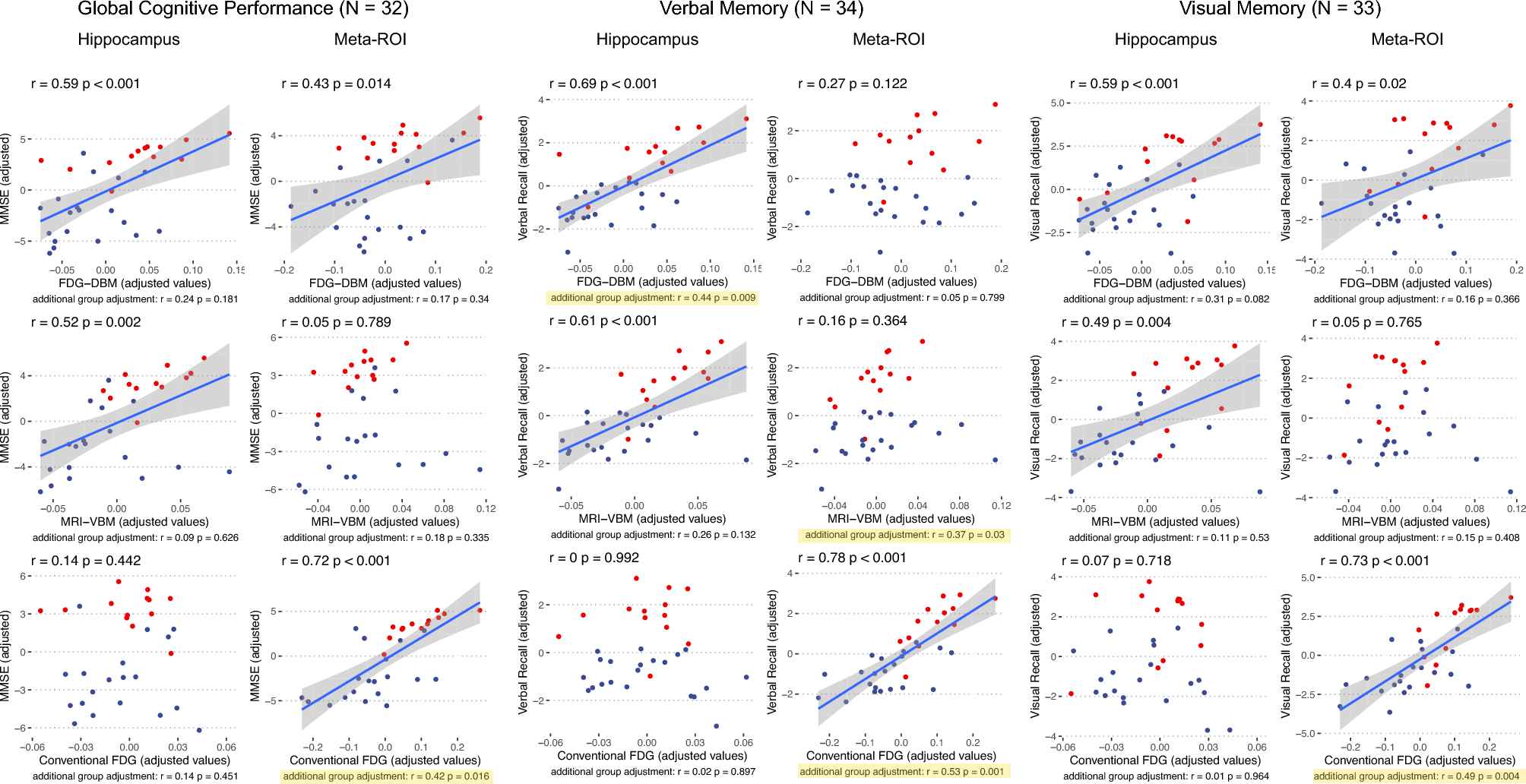

Associations between cognitive test scores and measures of the two ROI for each of the three modalities, FDG-DBM, MRI-VBM, and conventional FDG. Variables were adjusted for age, sex, and TIV (FDG-DBM and MRI-VBM) or age (conventional FDG). P and r values below scatter plots were corrected for the additional effect of factor ‘group’ (highlighted in yellow if significant); those above scatter plots were not corrected for the group effect. Blue and red dots represent patient or HEC data, respectively. Blue line shows linear fit, gray area 95% confidence interval.
