From: Association of pathogenic determinants of Fusobacterium necrophorum with bacteremia, and Lemierre’s syndrome

Fig. 2

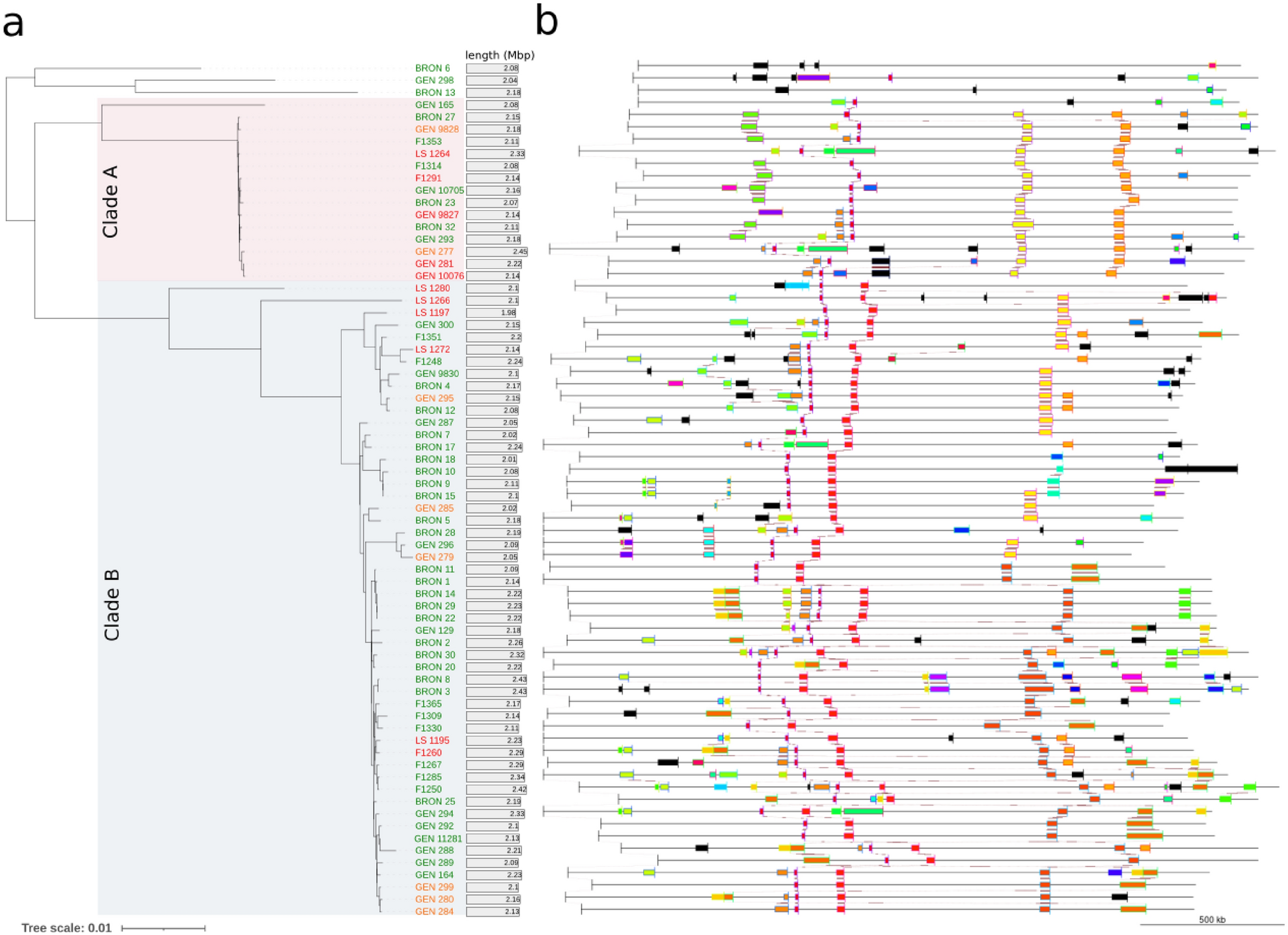

Phylogenetic reconstruction and mobile elements. (a) Midpoint rooted phylogenetic tree based on the concatenated alignments of single-copy core orthologs. The genomes are colored according to the assigned clinical category (red: LS, orange: BAC, green: LI), and the two main clades are highlighted in light blue and pink for Clade A and Clade B, respectively. (b) Distribution of clusters of similar genomic islands along the genomes. Clusters with low or no similarity to any of the identified horizontally transferred regions are shown in black.
