Fig. 1 | Scientific Reports

Fig. 1

From: Identification of multiple inter- and intra-genotype reassortment mammalian orthoreoviruses from Japanese black cattle in a beef cattle farm

Fig. 1

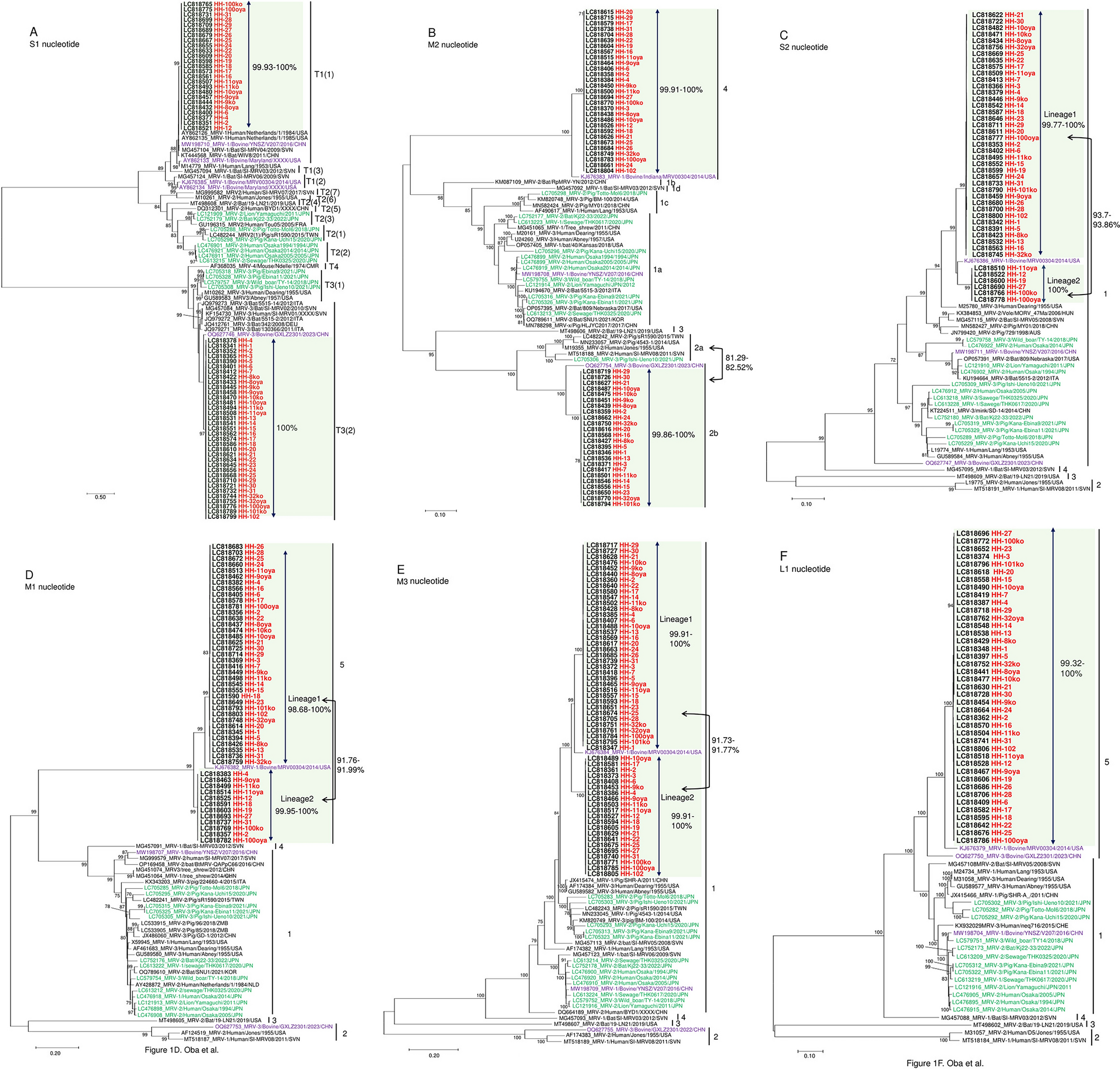

Phylogenetic analyses based on the nearly complete S1 (A), M2 (B), S2 (C), M1 (D), M3 (E), and L1 (F) gene nucleotide sequences of HH MRVs and MRV strains obtained from the GenBank/EMBL/DDBJ databases. The phylogenetic trees were constructed using the maximum-likelihood method in MEGA7 with best fit models (the GTR + G model for the S1, the TN93 + G + I model for the M2, the T92 + G + I model for the S2, and the GTR + G + I model for the M1, M3, and L1 phylogenetic trees). Bootstrap values above 70 (1000 replicates) are indicated. The bars represent the corrected genetic distances. HH MRVs, bovine MRVs, and Japanese MRVs are indicated in red, purple, and green, respectively.
