From: Aqueous phase adsorption of phenothiazine derivative onto zinc oxide doped activated carbon

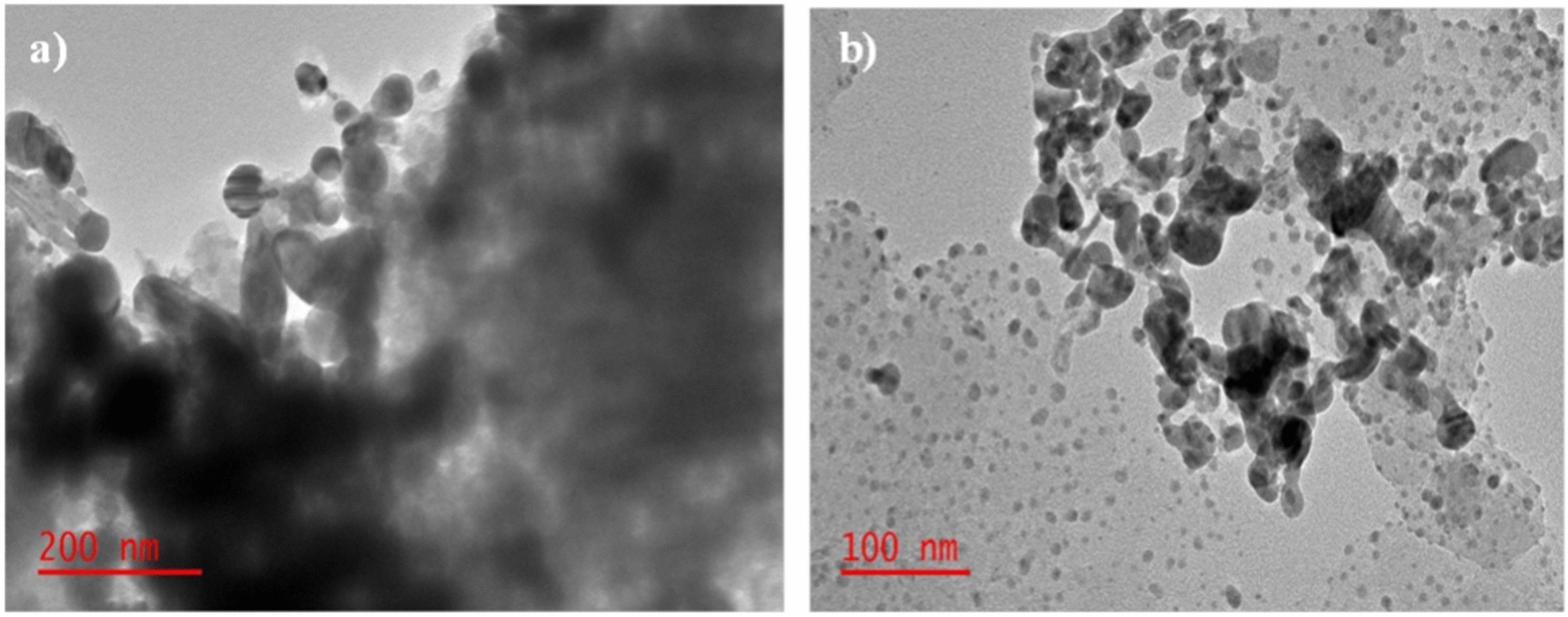

TEM images showing the size, shape, and dispersion of zinc oxide-doped activated carbon nanocomposite at (a) 200 nm and (b) 100 nm.
