Fig. 4 | Scientific Reports

Fig. 4

From: Multipartite network analysis to identify environmental and genetic associations of metabolic syndrome in the Korean population

Fig. 4

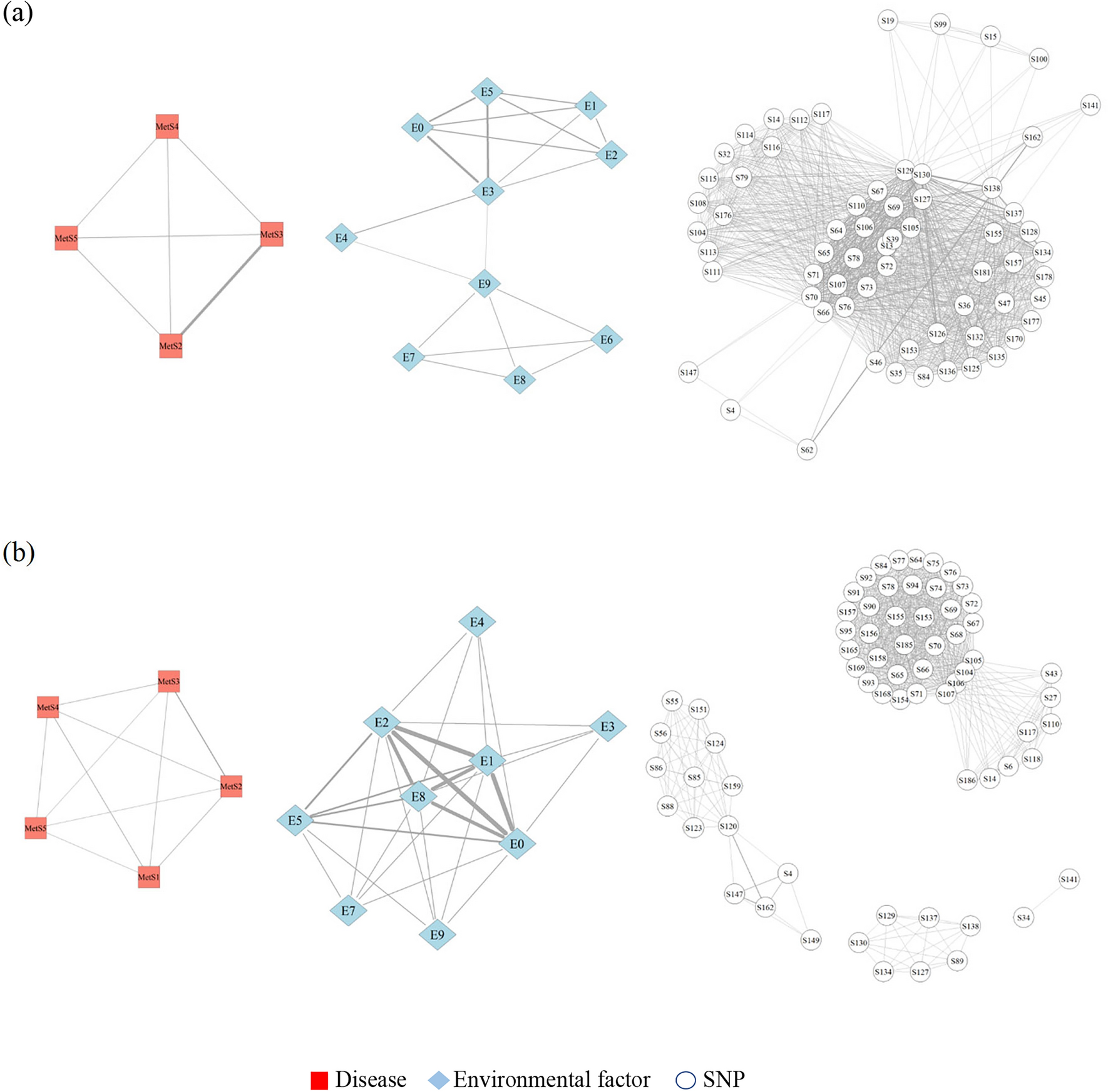

Projected unipartite networks using concurrent projection. E0 (age), E1 (education), E2 (income), E3 (alcohol), E4 (smoking), E5 (physical activity), E6 (total energy), E7 (protein intake), E8 (fat intake), E9 (carbohydrate intake); MetS1 (abdominal obesity), MetS2 (triglycerides), MetS3 (HDL-C), MetS4 (hypertension), MetS5 (fasting glucose); S1–S190 (SNPs) ; Line thickness (degree of association). (a) Data from men. (b) Data from women.
