From: Synthetic lumbar MRI can aid in diagnosis and treatment strategies based on self-pix networks

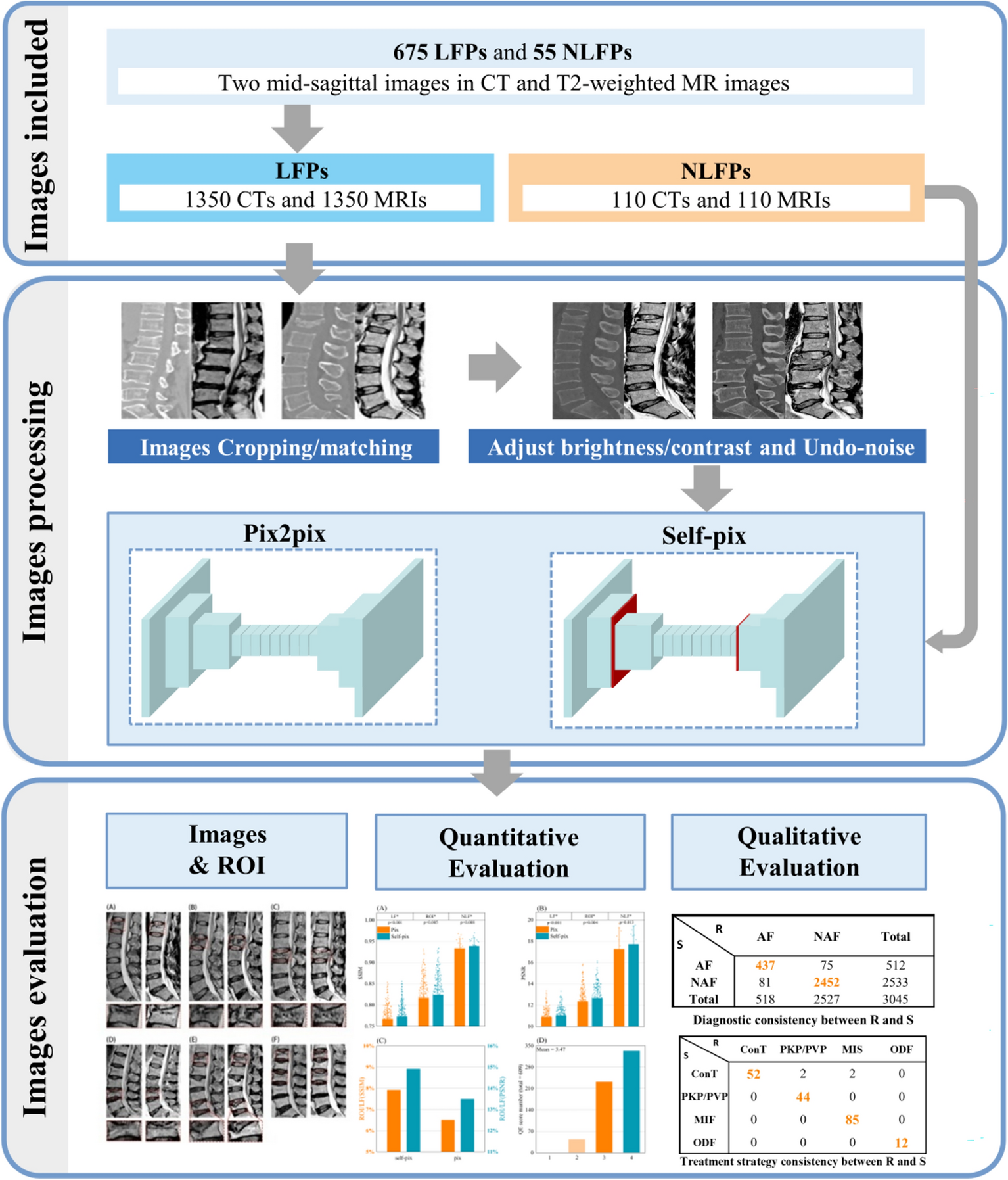

Overview of the research pipeline. LFP = lumbar fracture participant, NLFP = non lumbar fracture participant, Self-pix = Pix2pix with Self-Attention, LF = lumbar fracture, ROI = region of interest, NF = no fracture, PSNR = peak signal-to-no ratio, SSIM = structural similarity, R = real MRI, S = synthetic MRI, AF = acute fracture, NAF = no acute fracture, ConT = conservative treatment, PKP/PVP = percutaneous vertebroplasty/percutaneous kyphoplasty, MIF = minimally invasive fixation, ODF = open decompression and fixation.
