Fig. 3
From: Synthetic lumbar MRI can aid in diagnosis and treatment strategies based on self-pix networks

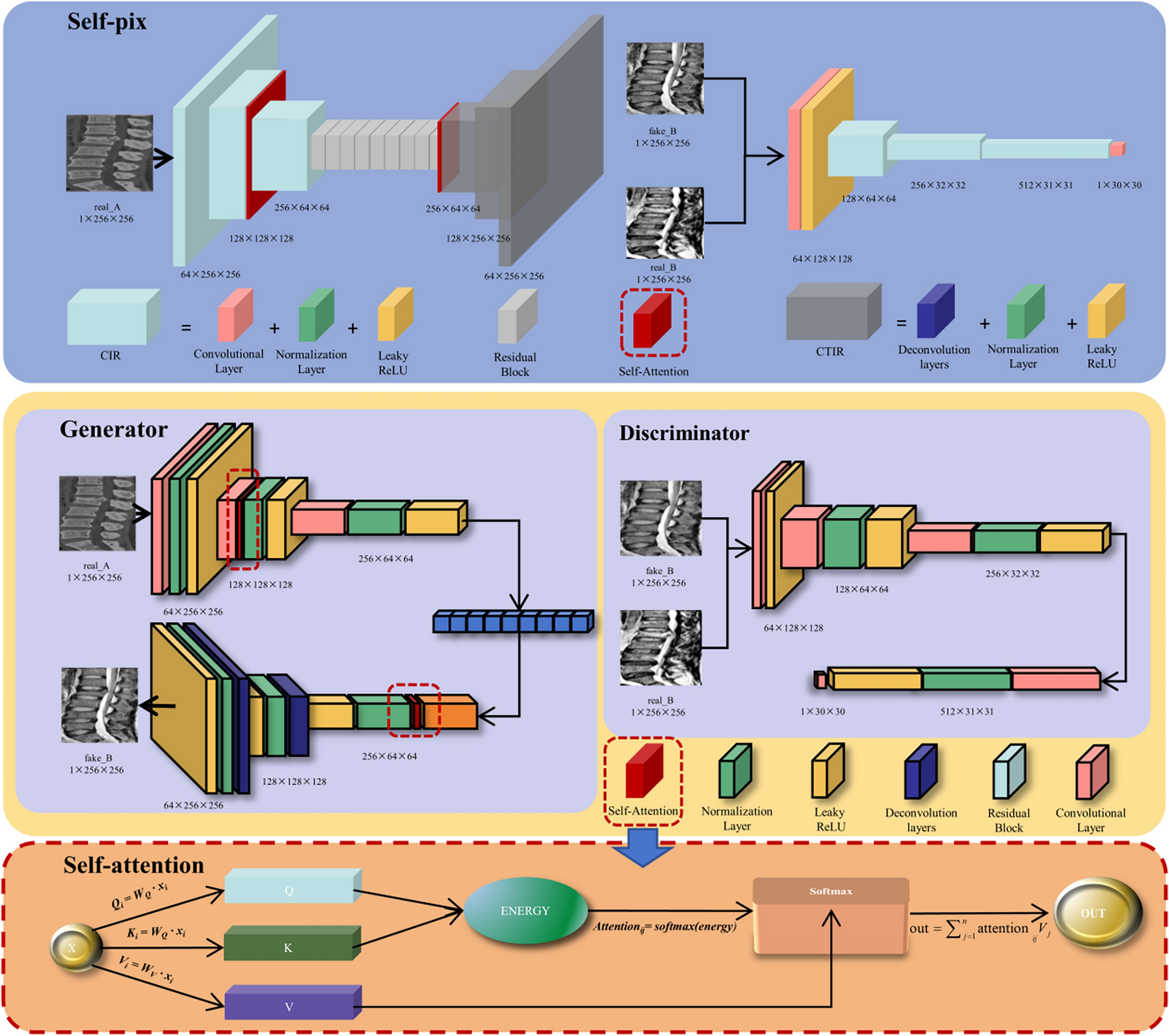

Overall framework of the model, including the generator and discriminator. Self-Attention (drowned in the red dashed box), focusing on the change areas (fracture sites), was added to the first down-sampling layer, the first up-sampling layer and each Resblock, respectively.
