From: Paleo-climatic control on recharge and fresh-salt groundwater distribution in the Red River delta plain, Vietnam

Fig. 6

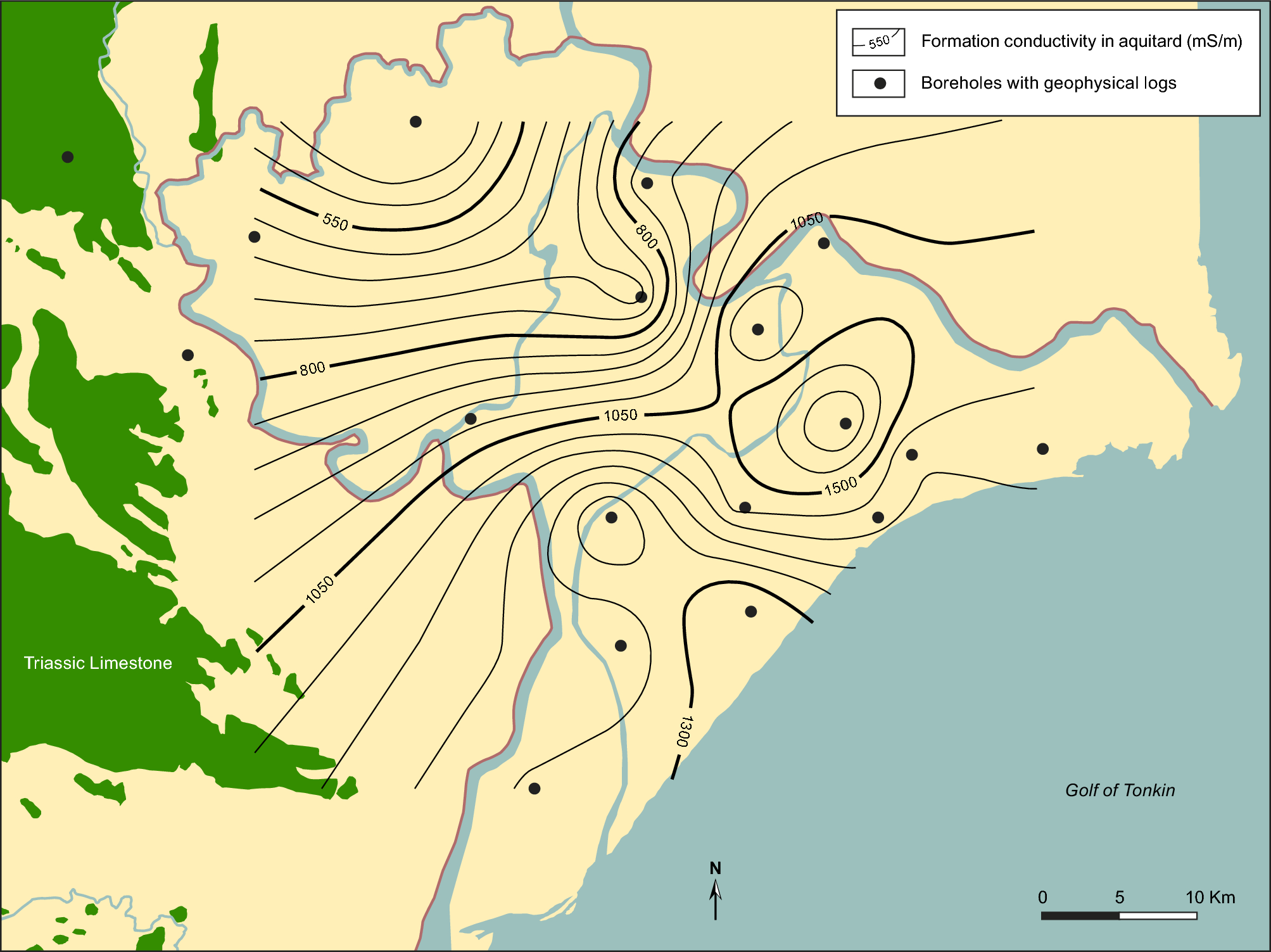

Formation conductivity (mS/m) in the Holocene aquitard interpreted from induction logs. A formation electrical conductivity of 550 mS/m and 1500 mS/m corresponds to pore water chloride concentrations of 5000 mg/L and 16,000 mg/L, respectively. For comparison is the chloride concentration in oceanic water 18,900 mg/L. Map background produced in MapInfo Pro 15.0 using data from National Center for Water Resources Planning and Investigation. Contours produced by Surfer v. 24.
