Fig. 4 | Scientific Reports

Fig. 4

From: Motion onset VEPs can see through the blur

Fig. 4

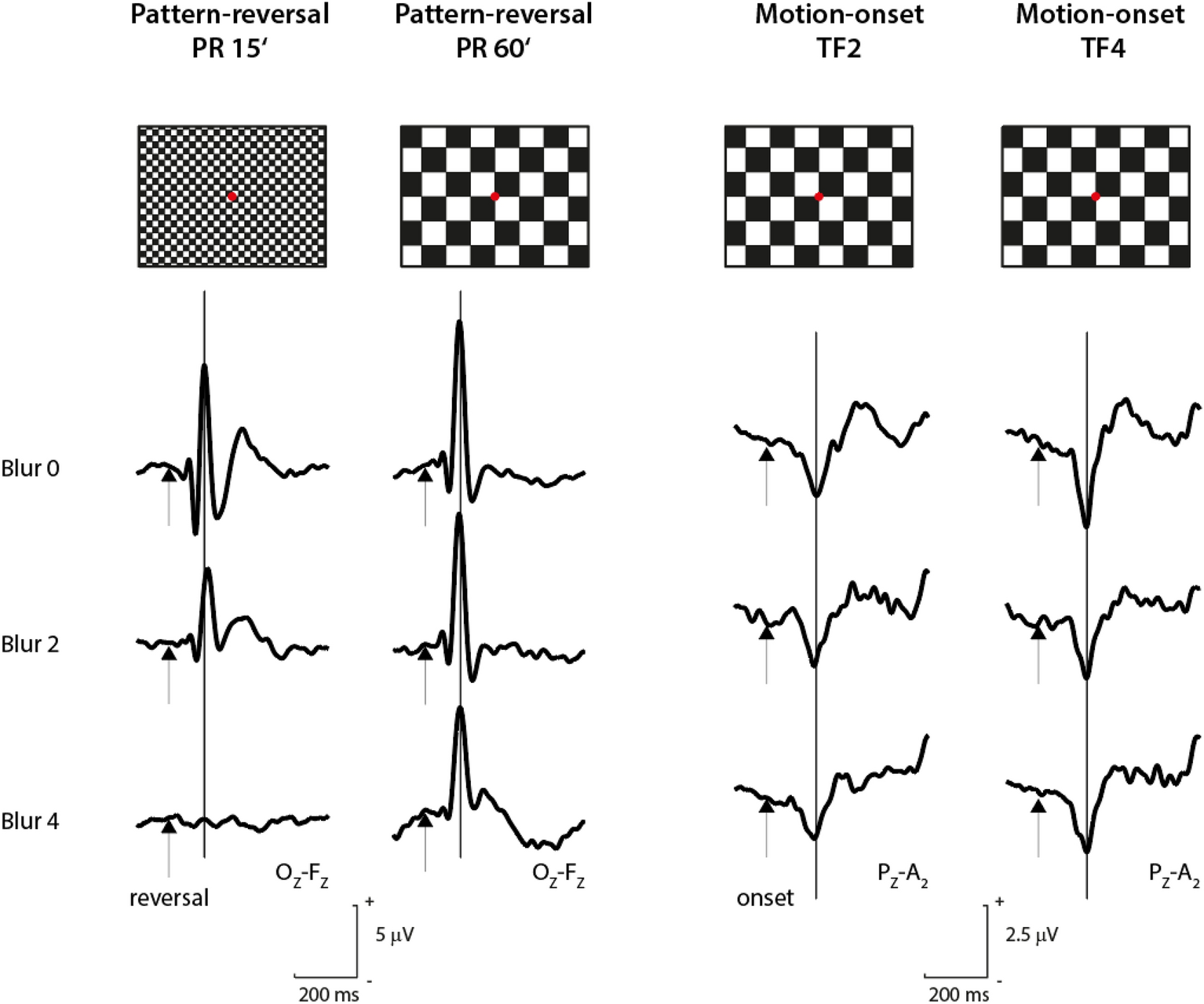

Grand average VEP recordings across subjects for the four stimulations and three blur conditions used. At the top of the figure, icons show the specific stimulus pattern: from the left are the stimulations PR 15´, PR 60´, MO TF2, and MO TF4. In the bottom part, the VEP grand averages over all subjects for a particular stimulation and digital blur condition are depicted. The rows show the effect of blurring. The changes in the first two columns correspond to the sensitivity of the PR VEP to digital blur. In contrast, the stability of the responses in the right two columns illustrates the robustness of the MO VEP.
