From: Metabolomic and transcriptomic basis of photoperiodic response regulation in broomcorn millet (Panicum miliaceum L.)

Fig. 3

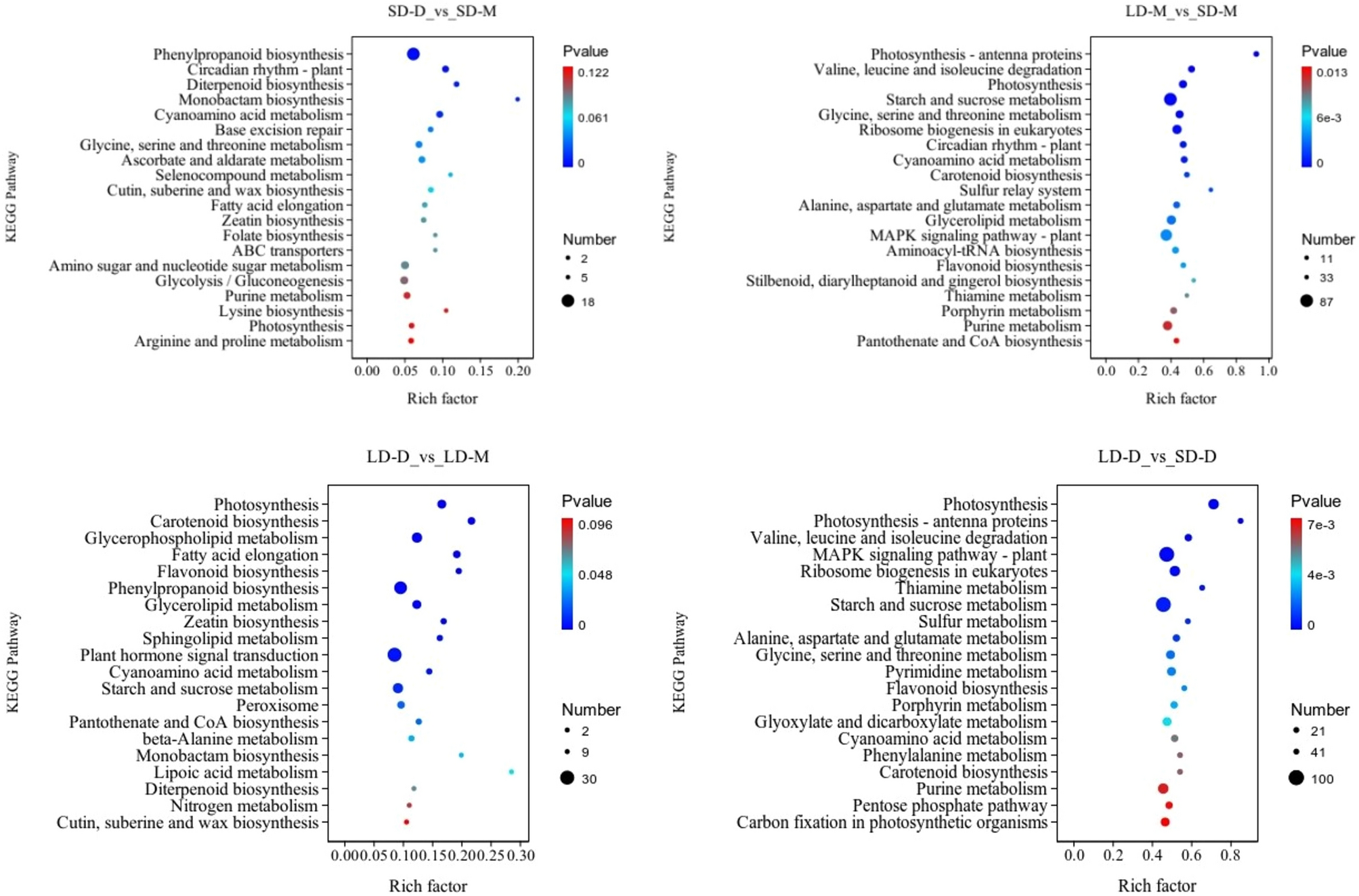

Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment pathways of the DEGs between the LD-D and LD-M, SD-D and SD-M, LD-D and SD-M, as well as LD-M and SD-M. The horizontal axis represents the rich factor of DEGs, and the vertical axis represents the name of the item. The size of the dot represents the number of DEGs, and the color of the dot represents the enrichment significance. LD-D: D32 Panicum miliaceum L. genotype under long-day treatment; LD-M: M51 Panicum miliaceum L. genotype under long-day treatment; SD-D: D32 Panicum miliaceum L. genotype under short-day treatment; SD-M: M51 Panicum miliaceum L. genotype under short-day treatment. www.kegg.jp/kegg/kegg1.html.
