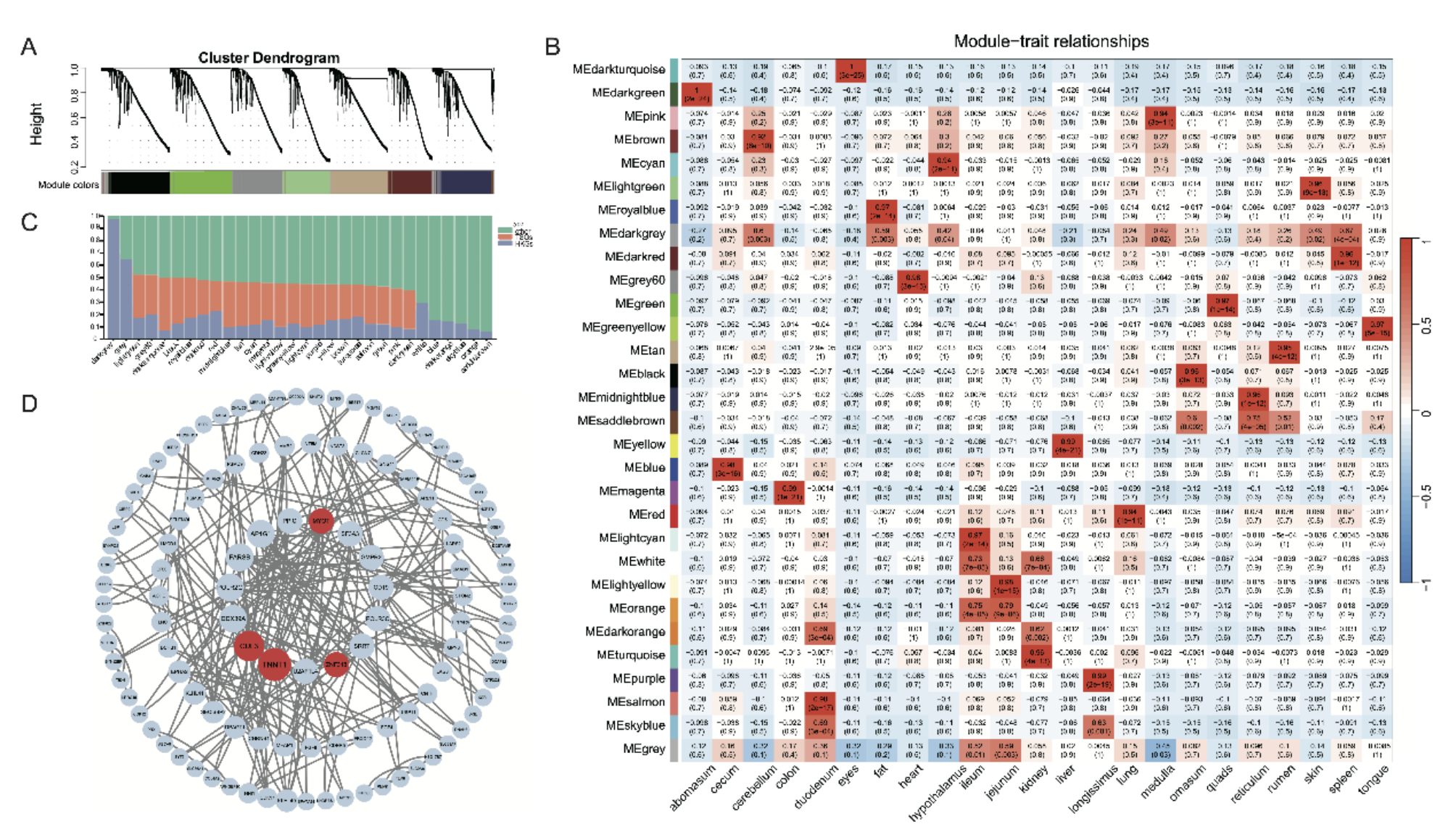

Co-expression gene network analysis of 23 tissues in black goats. (A) Cluster dendrogram of TPM > 1. (B) Heatmap of the relationship between the 30 modules and 23 tissues. Red represents high correlation, blue represents low correlation. (C) The distribution of HKGs, TSGs, and other genes across various modules. (D) protein-protein interaction network (PPI) interaction diagram of HUBGs in the biceps femoris. The innermost genes representing the HUBGs.
