Figure 3
From: Characterizing smartphone capabilities for seismic and structural monitoring

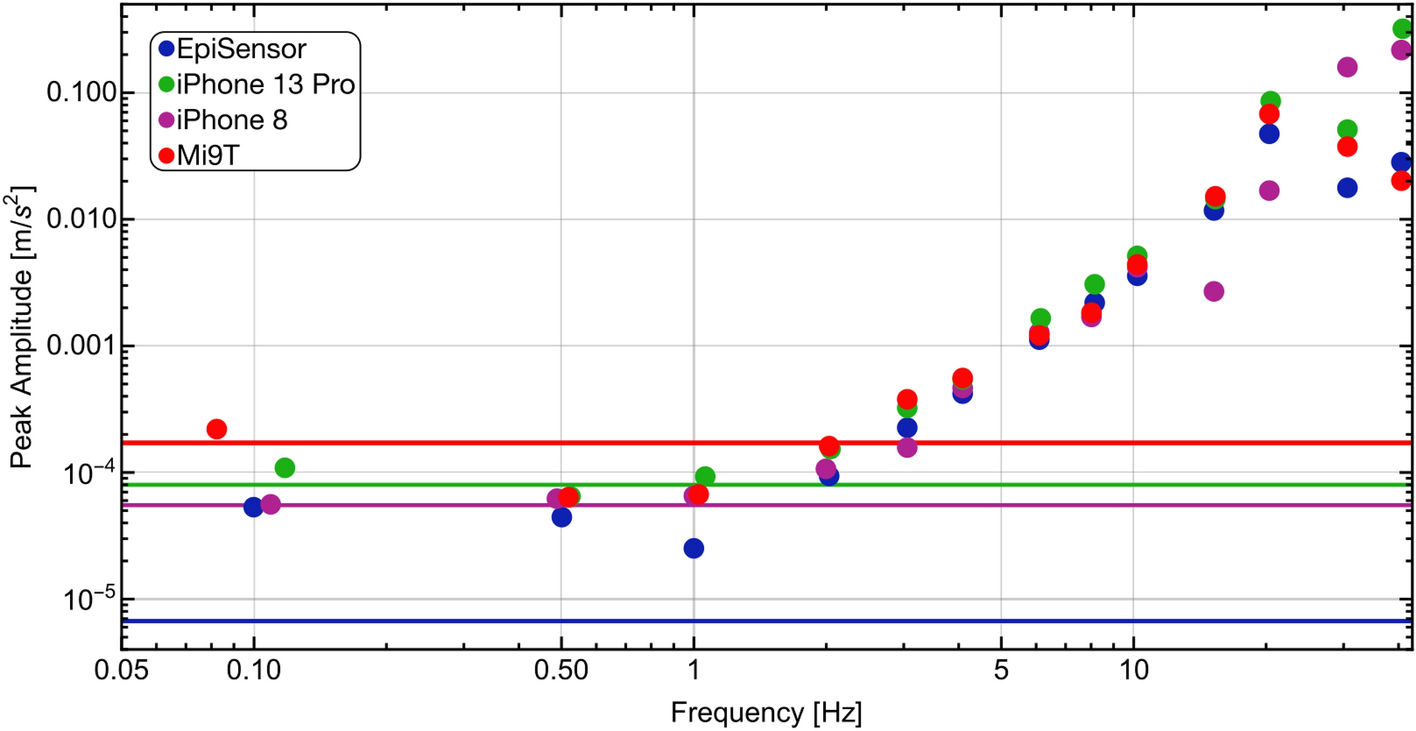

Dots show the value of the peak amplitude as a function of the measured Fourier frequencies. The mean noise level obtained from background signals within the frequency range 0.1 Hz–40 Hz is represented respectively for each sensor with lines. The observed frequency dependence of the peak amplitude is due to the different responses of the actuator as a function of frequency.
