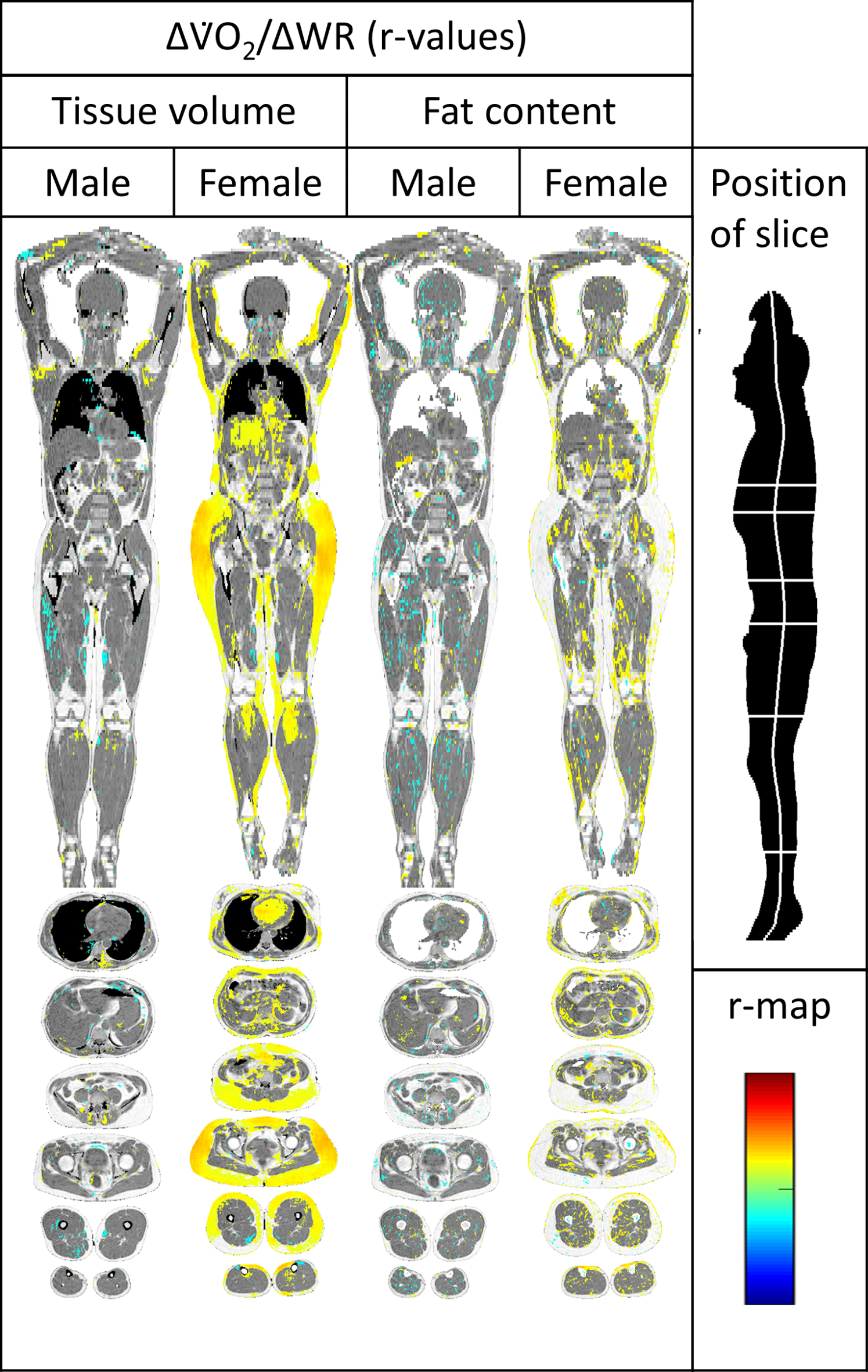

Imiomics maps of voxel-wise Pearson’s correlations (r-map). Significant (p < 0.05) voxel-wise correlation coefficients are shown and colour-coded by its value (r-value), see colour-scale in the lower left. From left to right: Tissue volume vs. ΔV̇O2/ΔWR in males, tissue volume vs. ΔV̇O2/ΔWR in females, fat content vs. ΔV̇O2/ΔWR in males, fat content vs. ΔV̇O2/ΔWR in females.
