Fig. 7
From: Vibration response of piles at different distances induced by shield tunneling in hard rock strata

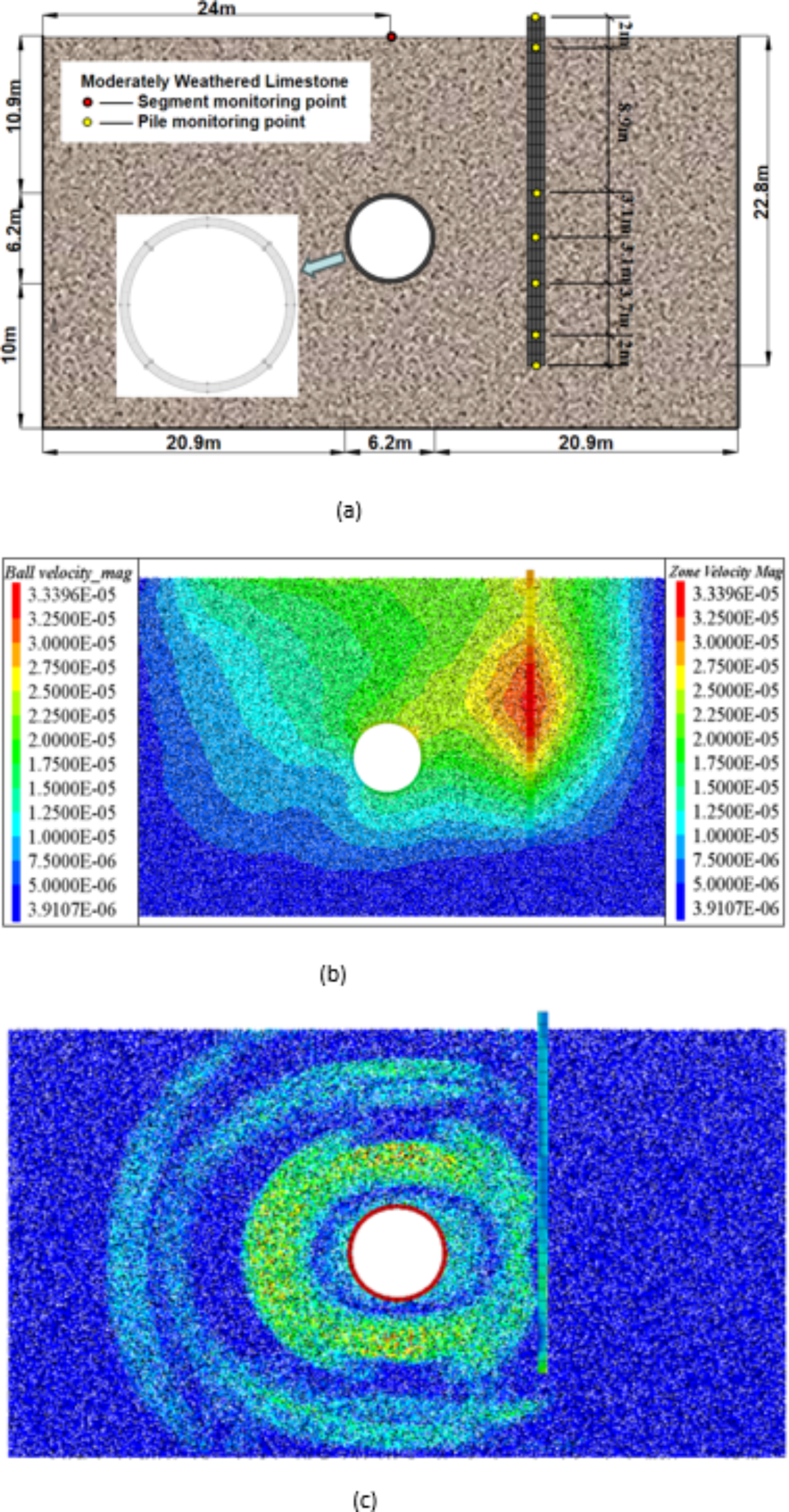

Numerical analysis model. (a) Shield tunnel analysis model, (b) Coupled model equilibrium process, (c) Propagation of vibrations during shield tunneling.
