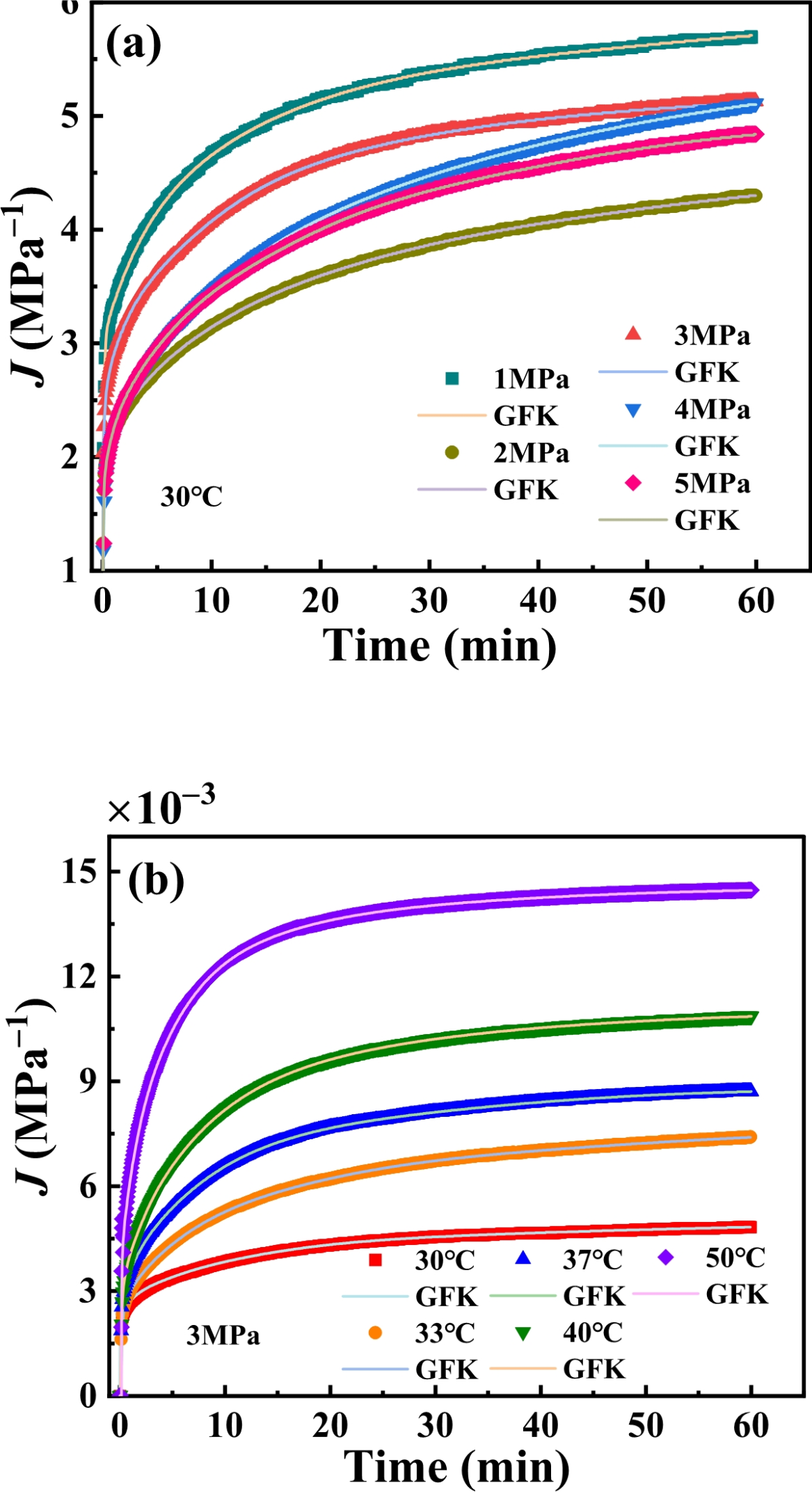

Fig. 15
From: Investigation on the creep mechanism of PA6 films based on quasi point defect theory
Creep compliance curves of PA6 film were fitted and analyzed by GFK model, (a) different stress at 30 °C, (b) different temperatures under stress of 3 MPa.
