Fig. 17
From: Investigation on the creep mechanism of PA6 films based on quasi point defect theory

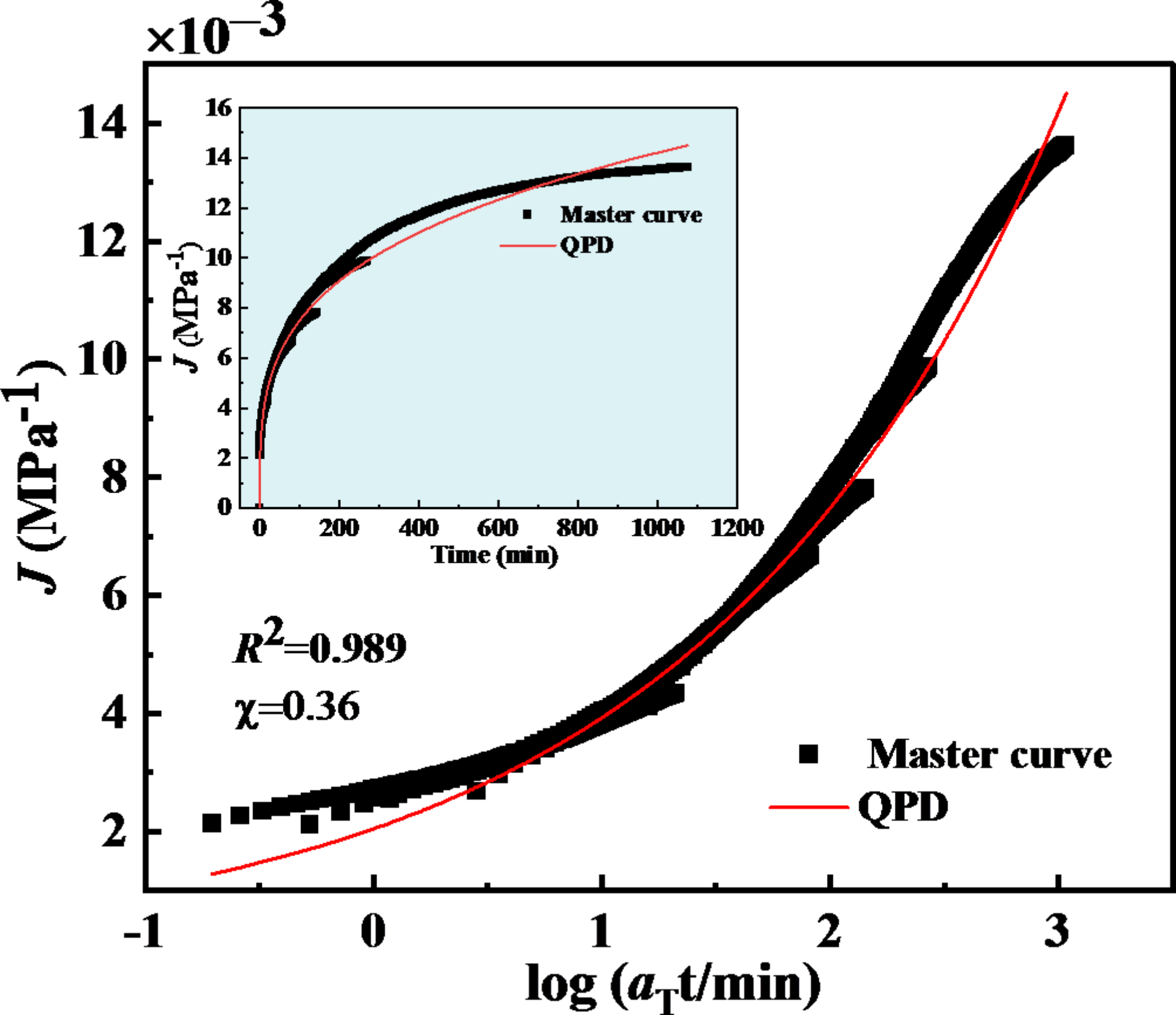

Creep compliance- logarithmic time master curve of PA6 for 50℃ fitted by QPD model (Eq. (19)), illustration is the Creep compliance-time master curve.
