From: Sedimentary provenance supports a mid-paleozoic tectonic connection between the Junggar and Altai terranes in central Asia

Fig. 2

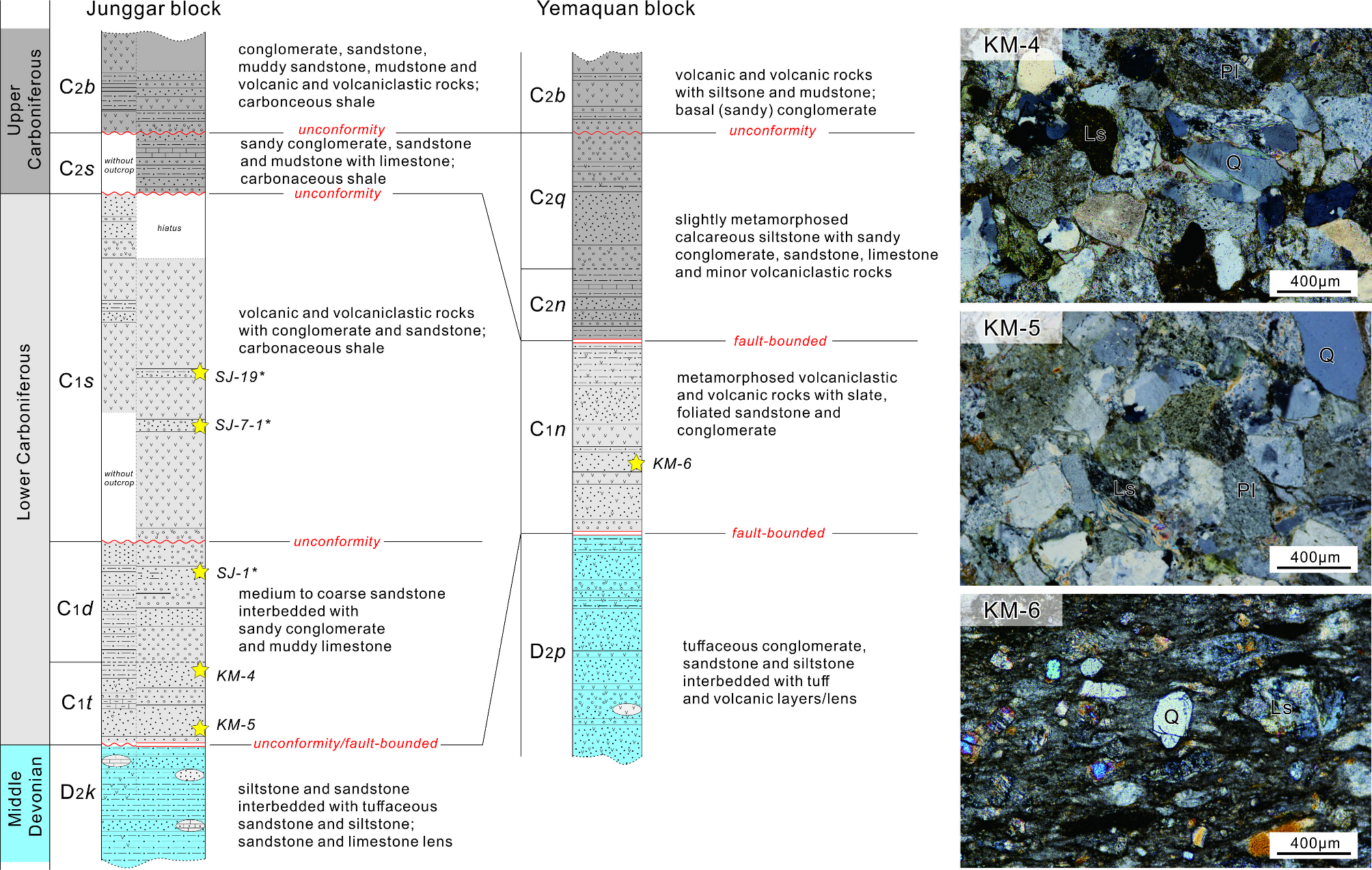

Comprehensive stratigraphic column for lithology and sampling sites and photomicrographs of the Early Carboniferous sandstones from the northern margin of the Junggar block and the southern margin of the Yemaquan block. D2k = Middle Devonian Karamaili Formation; D2p = Middle Devonian Pingdingshan Formation; C1t = Lower Carboniferous Tamugang Formation; C1d = Lower Carboniferous Dishuiquan Formation; C1s = Lower Carboniferous Songkaersu Formation; C1n and C2n = Lower Carboniferous Nanmingshui Formation (lower and upper part); C2s = Upper Carboniferous Shuangjingzi Formation; C2q = Upper Carboniferous Qingshui Formation; C2b = Upper Carboniferous Batamayineishan Formation; Q = quartz; Pl = plagioclase; Ls = lithic shards. The locations of the samples with (*) are from Li et al.33.
