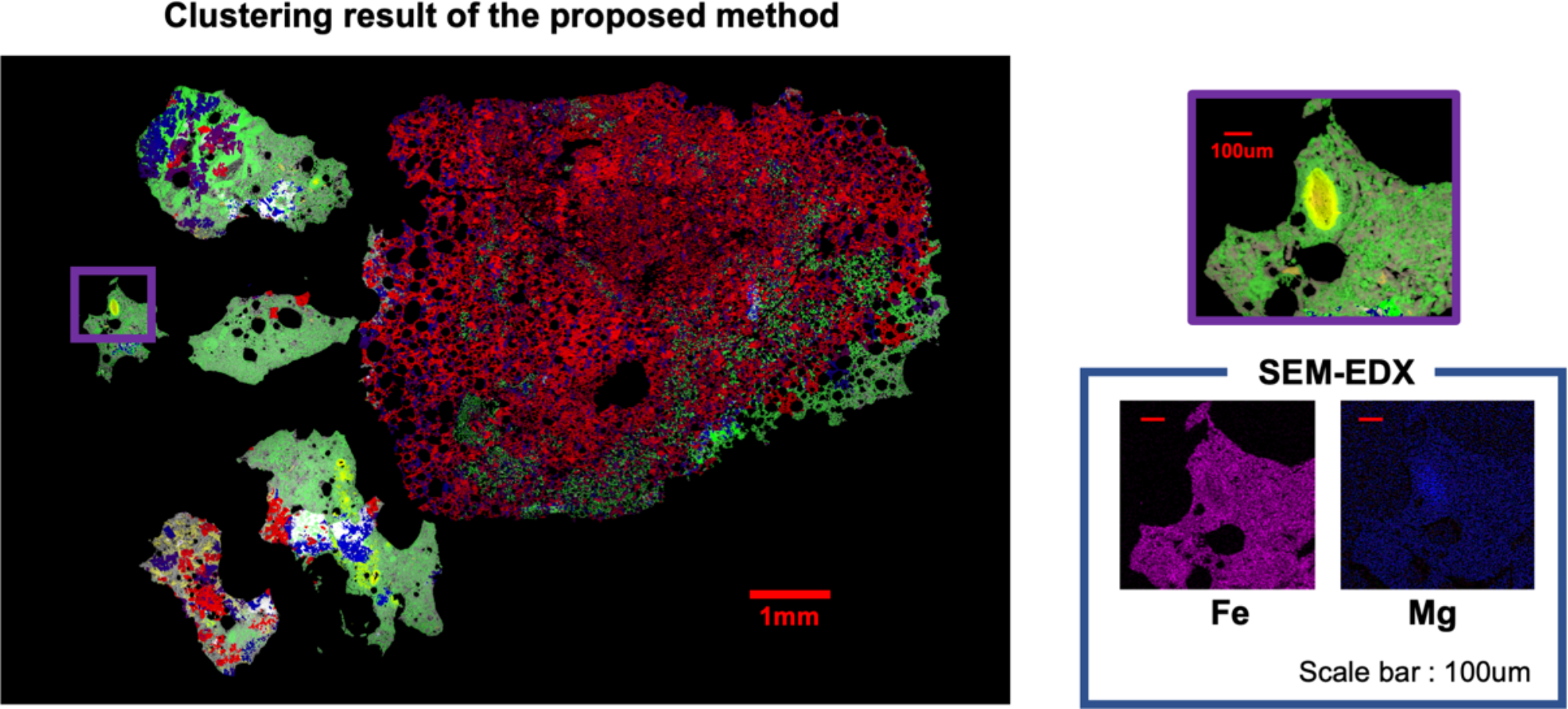

Fig. 5

Clustering result of the large-scale measurement data of an actual material and results of SEM-EDX measurements. The colors correspond to clusters representing different chemical states, and the shading shows the component ratios and iron density in the clustering result image. SEM-EDX measurements show that the yellow phase is Mg-rich phase.
