From: Multifaceted natural drought response mechanisms in three elite date palm cultivars uncovered by expressed sequence tags analysis

Fig. 5

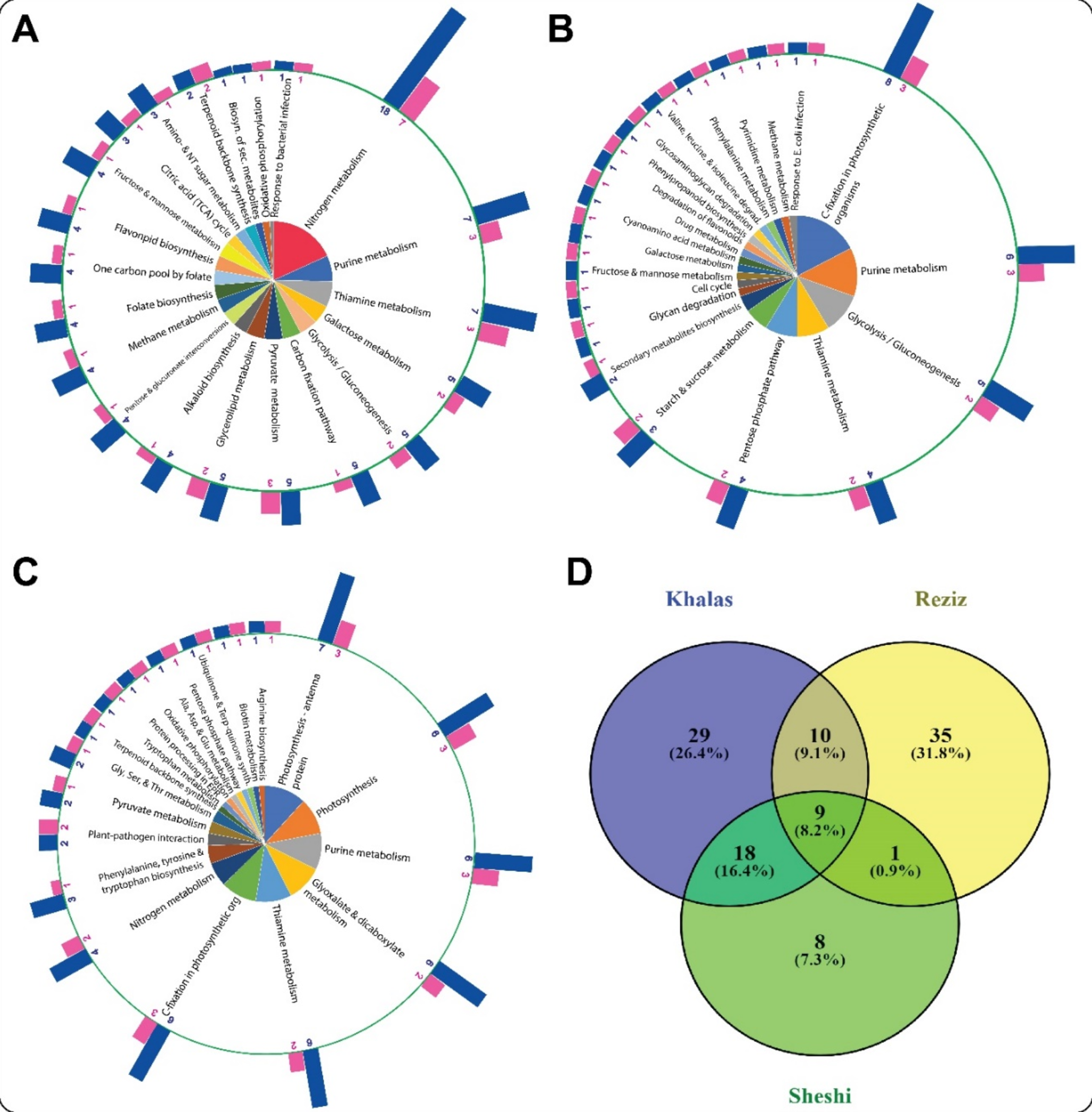

KEGG pathways identified in three date palm cultivars: Khalas (A), Reziz (B), and Sheshi (C). The central portion (pie graph) displays the pathway names and relative abundance, while the outer section features a histogram depicting the number of ESTs (purple) and the number of genes encoding these enzymes (blue).The Venn diagram illustrates the number and percentage of common and unique pathways among the three date palm cultivars (D).
