From: Acquiring sequentially time-resolved two-dimensional images with parallel multi-group sampling strategy

Fig. 2

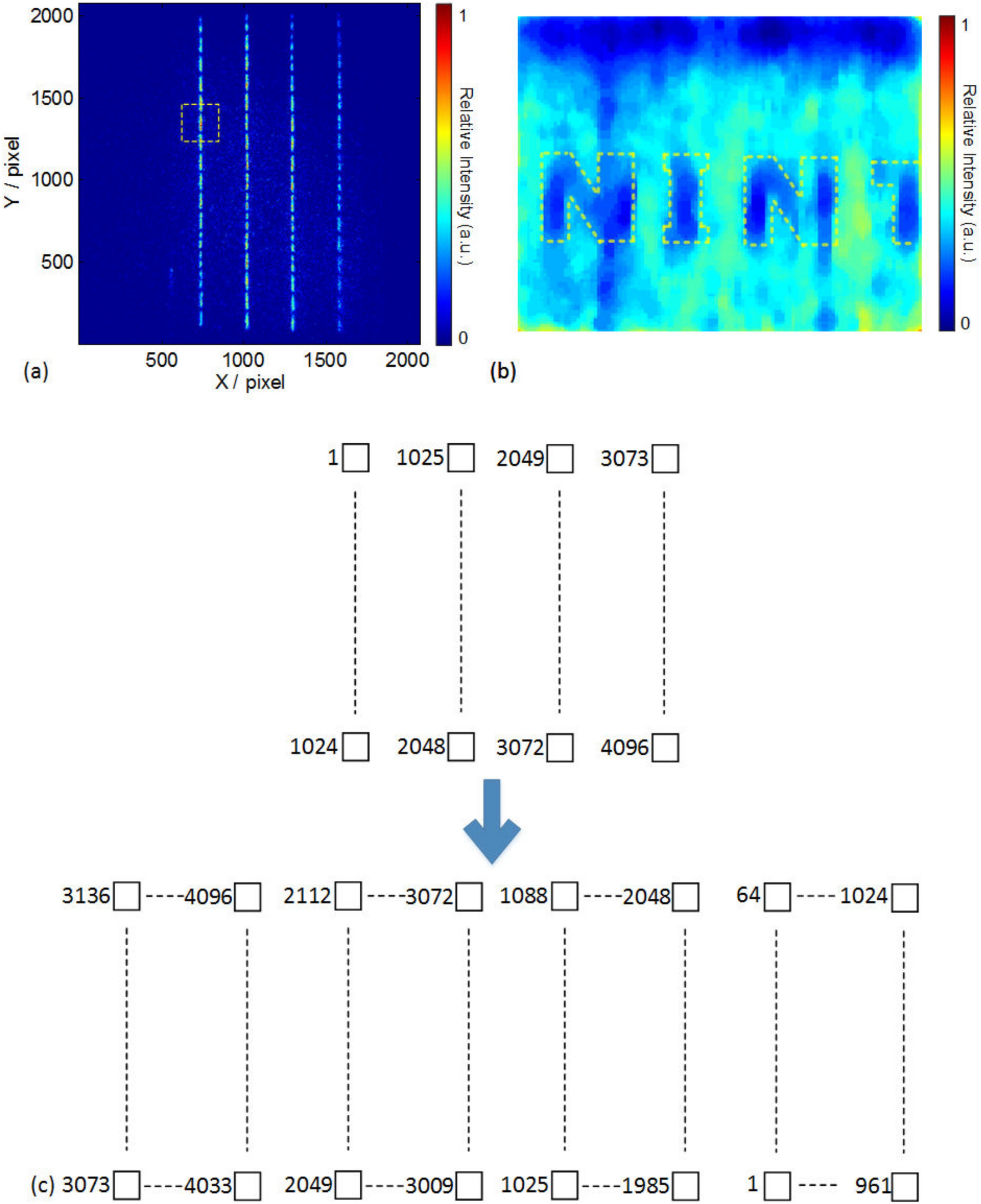

(a) The raw image obtained with the photography system under the condition that the streak camera was operated in the static state and the image object was a plate with a mark of NINT illuminated with a stable light source. The scanning direction of the streak camera is horizontal. (b) The recovered image with the mark of NINT from the raw image. (c) The position relation of pixels between the 1D image and 2D image.
