Figure 4
From: Using mobile EEG to study auditory work strain during simulated surgical procedures

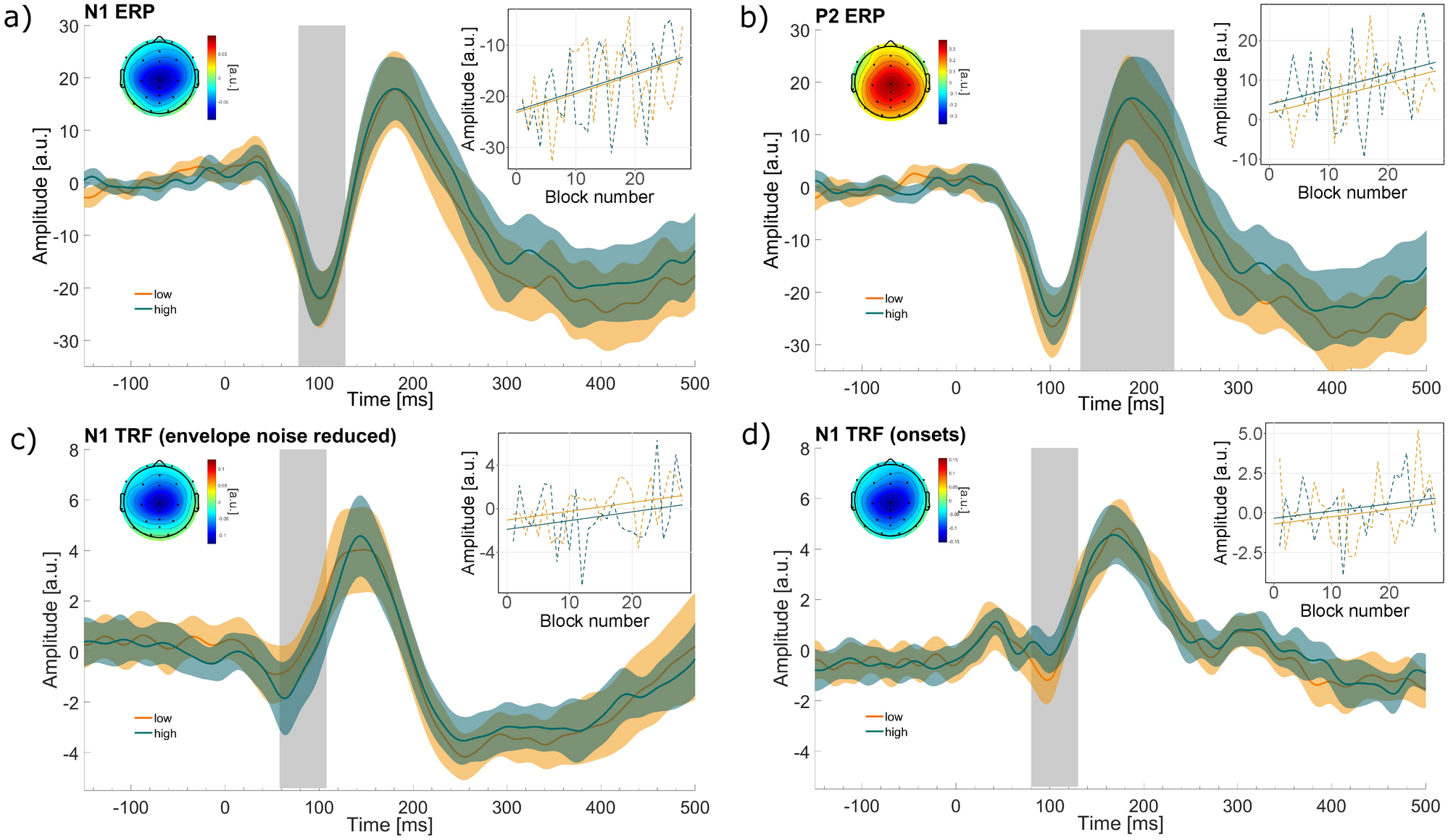

The first GED components of the (a) N1 ERP (demand: n.s., time: \(p=.0012\)), (b) P2 ERP (demand: n.s., time: \(p=.0014\)), (c) N1 TRFenvelope (demand: n.s., time: n.s.), and (d) N1 TRFonsets (demand: n.s., time: n.s.). The morphology shows the GED time-series for each condition, averaged over participants. The shaded area represents the confidence interval across participants. The grey bar shows the time-window that was used to derive the amplitudes. The topographies depict the forward model of the GED weights and shows which channels contributed most to the GED component. The graph to the right, shows the change in amplitude across time and conditions. Dotted lines show averaged data over participants for each condition and block. Solid lines represent predicted responses that were calculated using the second model.
