Fig. 7
From: Rapid Campimetry in glaucoma – correspondence with standard perimetry and OCT

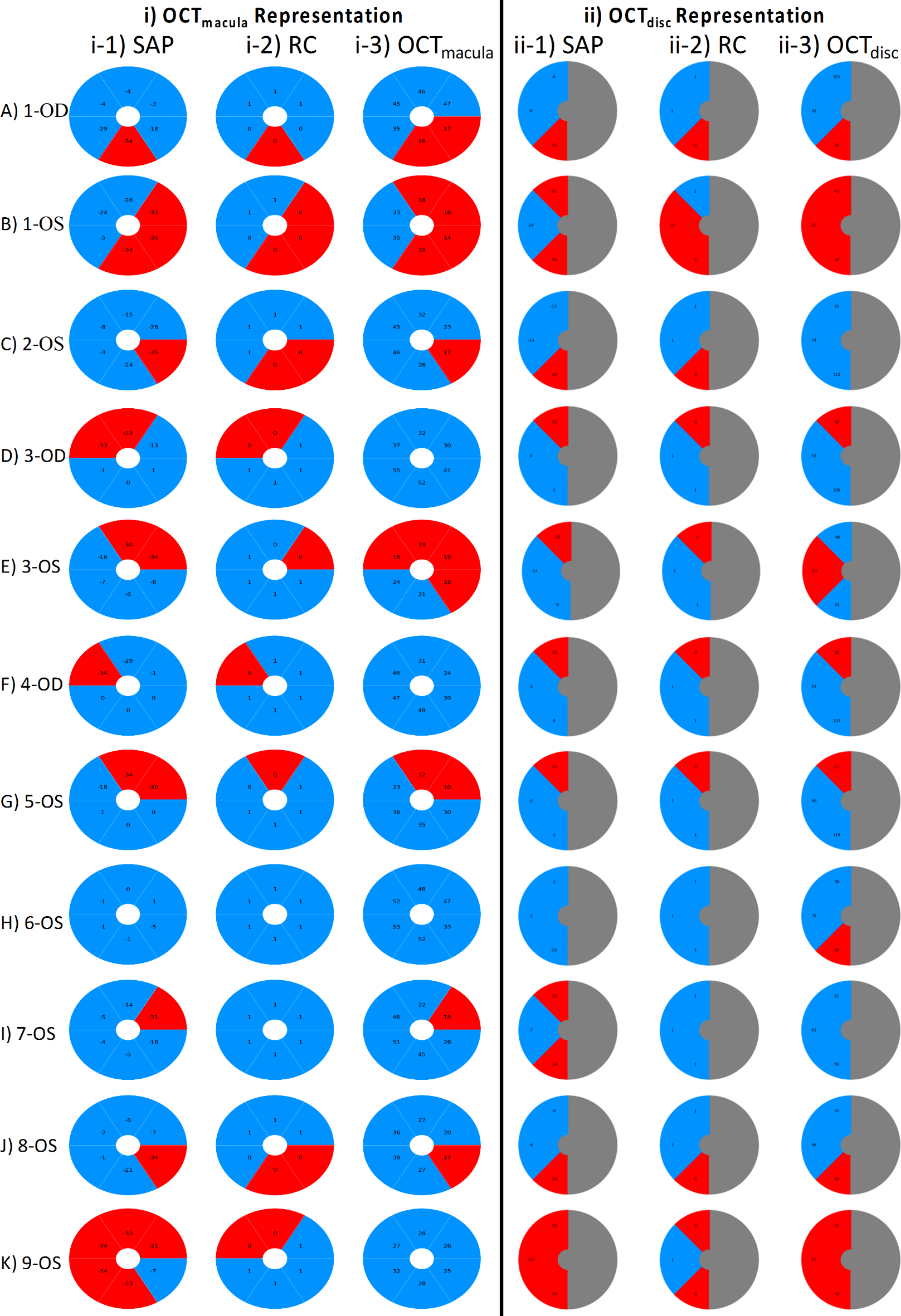

VF locations sectorial grouping and structure-function (SF) correspondence with macula and disc OCT. i) Macula-related deviation-map construction of SAP (1), RC (2) and OCTmacula (3) that account for GCL displacement using a 6-sector ellipse of 4.8 × 4 mm excluding the central 1.2 × 1 mm of all modalities. ii) Optic disc-related map construction of SAP (1), RC (2), and OCTdisc (corresponding to the 3 sectors of optic disc, namely temporal, supertemporal & inferotemporal sectors. For illustrative purposes, we show the grouped SAP and RC locations as per the corresponding sector of the pRNFL thickness. The nasal part of OCTdisc (grey) is masked out as it has no direct relation to VF. The nasal part of SAP and RC maps is masked out for presentation purposes and remained part of the analysis as detailed in Fig. 2. The SAP, RC and OCTdisc maps are depicted as the field view of left eye. Red/blue denotes absolute/no scotoma.
