Fig. 2 | Scientific Reports

Fig. 2

From: Evolution of Pfdhps and Pfdhfr mutations before and after adopting seasonal malaria chemoprevention in Nanoro, Burkina Faso

Fig. 2

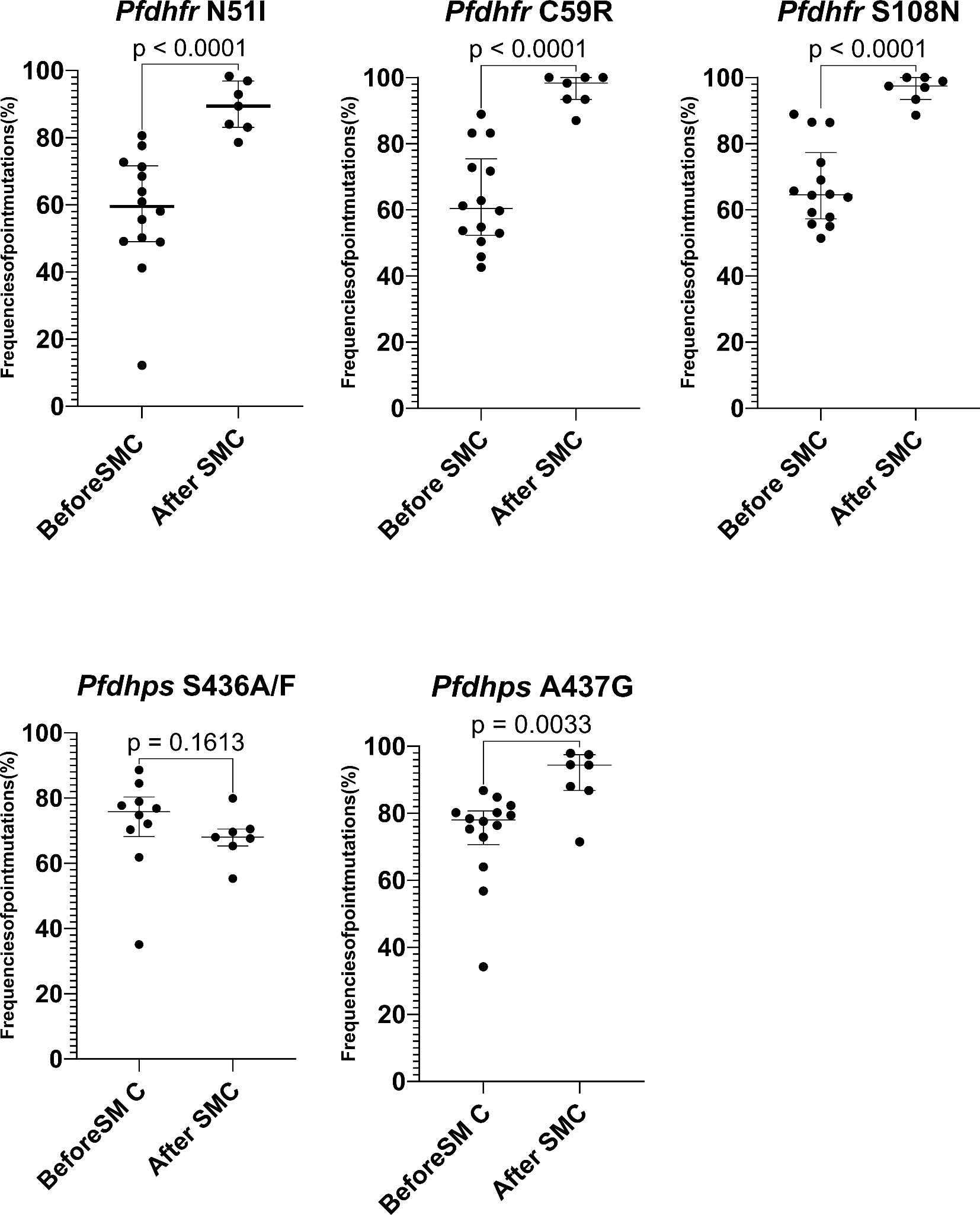

Prevalence of mutations at codons Pfdhfr and Pfdhps from previous studies conducted between 2009 and 2023 in Burkina before and after implementing SMC. The prevalence rates of various mutations documented in each study were graphed and illustrated by individual data points. Two distinct groups were delineated: one comprising studies conducted before the implementation of SMC (before 2014) and the other encompassing studies conducted after the adoption of SMC (after 2014). Each group’s median (with the interquartile) was compared using a non-parametric test (Wilcoxon Mann–Whitney test).
