Fig. 16
From: Design of waveguide with double layer diffractive optical elements for augmented reality displays

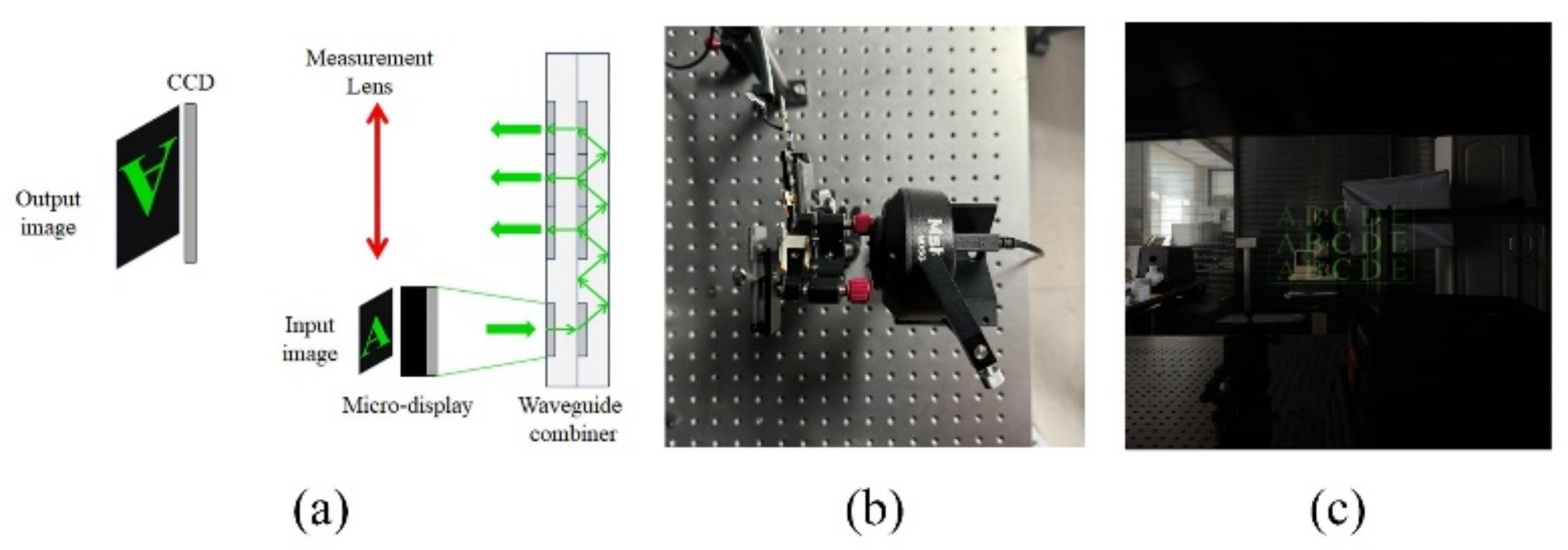

(a) Diagram of optical waveguide combiner image system (b) Optical system in laboratory (c) Image result of double layer coupled diffractive waveguide by camera.
