Fig. 7

From: An Andrias davidianus derived composite hydrogel with enhanced antibacterial and bone repair properties for osteomyelitis treatment

Fig. 7The alternative text for this image may have been generated using AI.

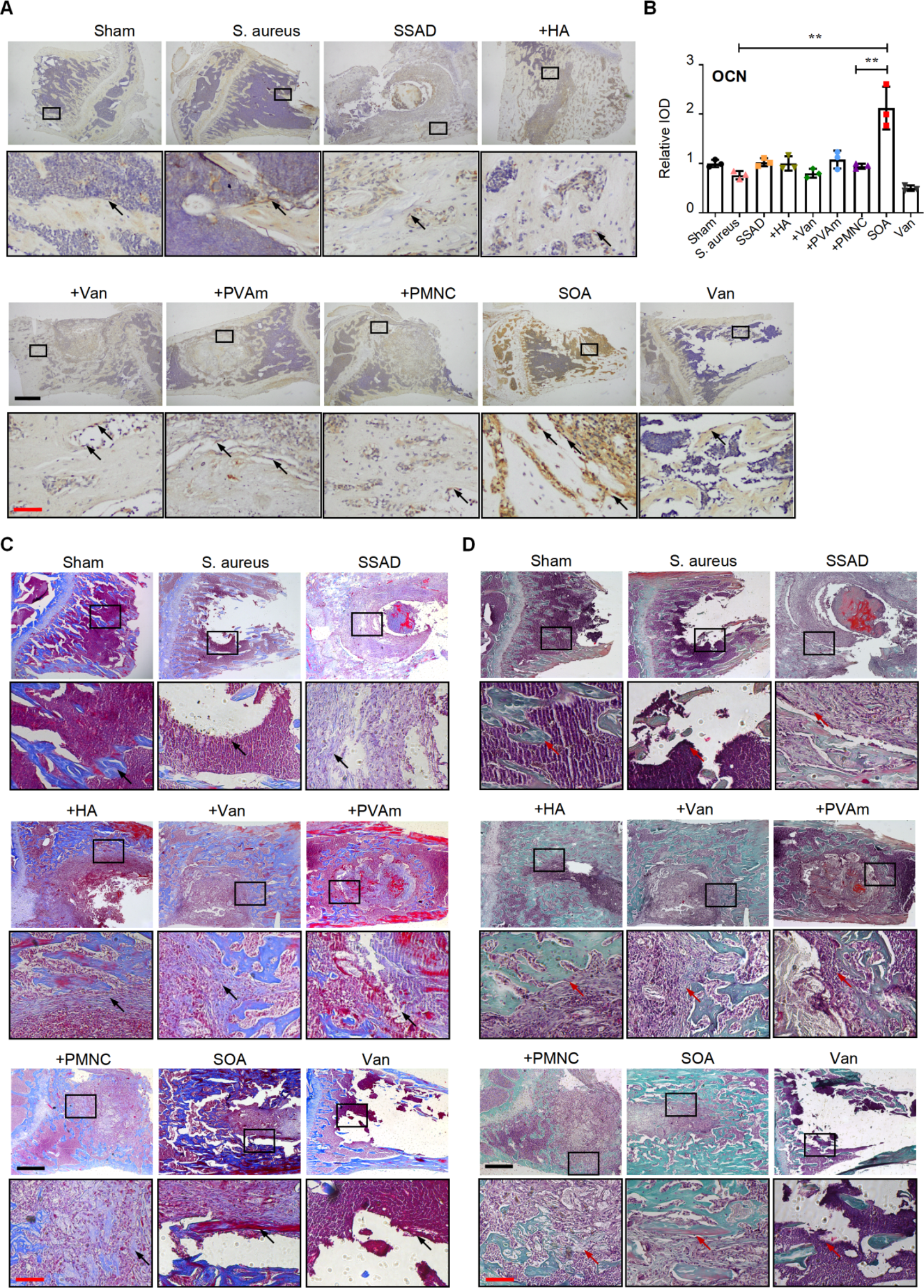

Histological staining of bone repair in osteomyelitis mice. A Immunohistochemical images of osteocalcin (OCN) in bone sections of each group. The black scale bar indicates 500 μm, and the red scale bar in the black box indicates 50 μm. B Quantification of relative integrated optical density (IOD) values of OCN immunostaining using Image-Pro Plus 6.0 software (https://en.freedownloadmanager.org/users-choice/Image-pro_Plus6.0_Free_Download.html). C Masson’s trichrome staining images of bone sections from each group (the newly formed bone is marked with a black arrow). The black scale bar indicates 500 μm, and the red scale bar in the black box indicates 50 μm. D Goldner’s trichrome staining images of bone sections from each group (newly formed bone is marked with a red arrow). The black scale bar indicates 500 μm, and the red scale bar in the black box indicates 50 μm. All quantitative data are presented as mean values ± standard deviation (n = 3, * p < 0.05, ** p < 0.01, *** p < 0.001, ns: no significance).
